35-2 Double Row Type B Roller Chain Sprockets

Description

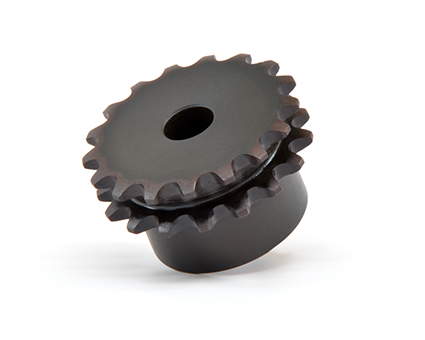

DOUBLE ROW B TYPE SPROCKETS

All PLI sprockets are manufactured using the ISO 9001 quality management system. Double row B type sprockets have a stock bore and usually require some altering before installation. Double row B Type sprockets are to be installed when using PLI Double row roller chains. These sprockets have a hub on one side. The teeth will be hardened on sprockets with 48 or fewer teeth.

Download data sheet

Model Specifications

Print

Double Single Sprockets Chain 40

Part No.PLI Sprocket No.No. of TeethOutside DiameterPitch DiameterStock BoreMax BoreHub Dia.L.T.B.Wgt. Lbs.
Part No.:
35D12
PLI Sprocket No.:
D35B12H
No. of Teeth:
12
Outside Diameter:
1.630"
Pitch Diameter:
1.449"
Stock Bore:
1/2"
Max Bore:
9/16"
Hub Dia.:
63/64"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.32
Part No.:
35D13
PLI Sprocket No.:
D35B13H
No. of Teeth:
13
Outside Diameter:
1.750"
Pitch Diameter:
1.567"
Stock Bore:
1/2"
Max Bore:
11/16"
Hub Dia.:
1 7/64"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.36
Part No.:
35D14
PLI Sprocket No.:
D35B14H
No. of Teeth:
14
Outside Diameter:
1.870"
Pitch Diameter:
1.685"
Stock Bore:
1/2"
Max Bore:
7/8"
Hub Dia.:
1 1/4"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.44
Part No.:
35D15
PLI Sprocket No.:
D35B15H
No. of Teeth:
15
Outside Diameter:
1.990"
Pitch Diameter:
1.804"
Stock Bore:
1/2"
Max Bore:
15/16"
Hub Dia.:
1 13/32"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.56
Part No.:
35D16
PLI Sprocket No.:
D35B16H
No. of Teeth:
16
Outside Diameter:
2.110"
Pitch Diameter:
1.922"
Stock Bore:
1/2"
Max Bore:
15/16"
Hub Dia.:
1 15/32"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.64
Part No.:
35D17
PLI Sprocket No.:
D35B17H
No. of Teeth:
17
Outside Diameter:
2.230"
Pitch Diameter:
2.041"
Stock Bore:
1/2"
Max Bore:
1 1/16"
Hub Dia.:
1 19/32"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.74
Part No.:
35D18
PLI Sprocket No.:
D35B18H
No. of Teeth:
18
Outside Diameter:
2.350"
Pitch Diameter:
2.159"
Stock Bore:
1/2"
Max Bore:
1 3/16"
Hub Dia.:
1 23/32"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.84
Part No.:
35D19
PLI Sprocket No.:
D35B19H
No. of Teeth:
19
Outside Diameter:
2.470"
Pitch Diameter:
2.278"
Stock Bore:
1/2"
Max Bore:
1 5/16"
Hub Dia.:
1 7/8"
L.T.B.:
1 1/4"
Wgt. Lbs.:
0.96
Part No.:
35D20
PLI Sprocket No.:
D35B20H
No. of Teeth:
20
Outside Diameter:
2.590"
Pitch Diameter:
2.397"
Stock Bore:
3/4"
Max Bore:
1 5/16"
Hub Dia.:
1 15/16"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.08
Part No.:
35D21
PLI Sprocket No.:
D35B21H
No. of Teeth:
21
Outside Diameter:
2.710"
Pitch Diameter:
2.516"
Stock Bore:
3/4"
Max Bore:
1 3/8"
Hub Dia.:
2 1/16"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.24
Part No.:
35D22
PLI Sprocket No.:
D35B22H
No. of Teeth:
22
Outside Diameter:
2.830"
Pitch Diameter:
2.635"
Stock Bore:
3/4"
Max Bore:
1 7/16"
Hub Dia.:
2 3/16"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.42
Part No.:
35D23
PLI Sprocket No.:
D35B23H
No. of Teeth:
23
Outside Diameter:
2.950"
Pitch Diameter:
2.754"
Stock Bore:
3/4"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.54
Part No.:
35D24
PLI Sprocket No.:
D35B24H
No. of Teeth:
24
Outside Diameter:
3.070"
Pitch Diameter:
2.873"
Stock Bore:
3/4"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.62
Part No.:
35D25
PLI Sprocket No.:
D35B25H
No. of Teeth:
25
Outside Diameter:
3.190"
Pitch Diameter:
2.992"
Stock Bore:
3/4"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.66
Part No.:
35D26
PLI Sprocket No.:
D35B26H
No. of Teeth:
26
Outside Diameter:
3.310"
Pitch Diameter:
3.111"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
1.98
Part No.:
35D30
PLI Sprocket No.:
D35B30H
No. of Teeth:
30
Outside Diameter:
3.790"
Pitch Diameter:
3.588"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
2.34
Part No.:
35D36
PLI Sprocket No.:
D35B36H
No. of Teeth:
36
Outside Diameter:
4.510"
Pitch Diameter:
4.303"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
3
Part No.:
35D42
PLI Sprocket No.:
D35B42H
No. of Teeth:
42
Outside Diameter:
5.230"
Pitch Diameter:
5.018"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
3.8
Part No.:
35D48
PLI Sprocket No.:
D35B48H
No. of Teeth:
48
Outside Diameter:
5.950"
Pitch Diameter:
5.734"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
4.66
Part No.:
35D52
PLI Sprocket No.:
D35B52
No. of Teeth:
52
Outside Diameter:
6.540"
Pitch Diameter:
6.224"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
5.4
Part No.:
35D60
PLI Sprocket No.:
D35B60
No. of Teeth:
60
Outside Diameter:
7.380"
Pitch Diameter:
7.165"
Stock Bore:
3/4"
Max Bore:
1 3/4"
Hub Dia.:
2 1/4"
L.T.B.:
1 3/8"
Wgt. Lbs.:
6.84
Part No.:
35D72
PLI Sprocket No.:
D35B72
No. of Teeth:
72
Outside Diameter:
8.810"
Pitch Diameter:
8.597"
Stock Bore:
3/4"
Max Bore:
2 3/8"
Hub Dia.:
3 1/2"
L.T.B.:
1 1/2"
Wgt. Lbs.:
11.04
Part No.:
35D76
PLI Sprocket No.:
D35B76
No. of Teeth:
76
Outside Diameter:
8.920"
Pitch Diameter:
8.752"
Stock Bore:
3/4"
Max Bore:
2 3/8"
Hub Dia.:
3 1/2"
L.T.B.:
1 1/2"
Wgt. Lbs.:
11.94
Part No.:
35D84
PLI Sprocket No.:
D35B84
No. of Teeth:
84
Outside Diameter:
10.250"
Pitch Diameter:
10.029"
Stock Bore:
3/4"
Max Bore:
2 3/8"
Hub Dia.:
3 1/2"
L.T.B.:
1 1/2"
Wgt. Lbs.:
14.98

*Has recessed groove in hub for chain clearance. 3/8" Pitch, Nominal = 0.168", Maximun bores shown will accommodate standard keyseat & setscrew over Keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to
