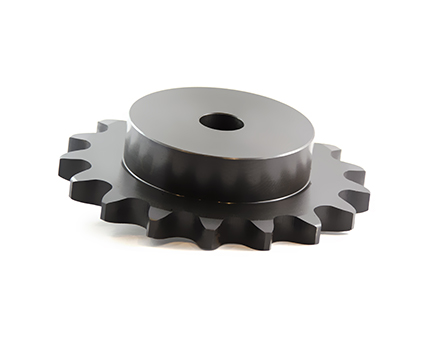

B TYPE STOCK BORE

All PLI sprockets are manufactured using the ISO 9001 quality management system. B type sprockets have a stock bore and usually require some altering before installation. B Type sprockets have a hub on one side. The teeth will be hardened on sprockets with 21 or fewer teeth.

Download data sheet

Model Specifications

Print
Part No.PLI Sprocket No.No. of TeethDiameters OutsideDiameters PitchBore StockBore MaxHub Dia.Hub L.T.B.Wgt. Lbs.
Part No. : 100B08PLI Sprocket No. : 100B08HNo. of Teeth : 8Diameters Outside : 3.77Diameters Pitch : 3.266Bore Stock : 1Bore Max : 1.25Hub Dia. : 2 7/8*Hub L.T.B. : 1.875Wgt. Lbs. : 2.3Add to cart
Part No. : 100B09PLI Sprocket No. : 100B09HNo. of Teeth : 9Diameters Outside : 4.18Diameters Pitch : 3.655Bore Stock : 1Bore Max : 1.625Hub Dia. : 2 13/16*Hub L.T.B. : 1.875Wgt. Lbs. : 3.2Add to cart
Part No. : 100B10PLI Sprocket No. : 100B10HNo. of Teeth : 10Diameters Outside : 4.6Diameters Pitch : 4.045Bore Stock : 1Bore Max : 1.875Hub Dia. : 3 1/4*Hub L.T.B. : 1.875Wgt. Lbs. : 4.1Add to cart
Part No. : 100B11PLI Sprocket No. : 100B11HNo. of Teeth : 11Diameters Outside : 5.01Diameters Pitch : 4.437Bore Stock : 1Bore Max : 2.25Hub Dia. : 3 9/16*Hub L.T.B. : 1.875Wgt. Lbs. : 5.3Add to cart
Part No. : 100B12PLI Sprocket No. : 100B12HNo. of Teeth : 12Diameters Outside : 5.42Diameters Pitch : 4.83Bore Stock : 1Bore Max : 2.25Hub Dia. : 4*Hub L.T.B. : 1.875Wgt. Lbs. : 6.4Add to cart
Part No. : 100B13PLI Sprocket No. : 100B13HNo. of Teeth : 13Diameters Outside : 5.82Diameters Pitch : 5.223Bore Stock : 1Bore Max : 2.375Hub Dia. : 3.875Hub L.T.B. : 1.625Wgt. Lbs. : 6.6Add to cart
Part No. : 100B14PLI Sprocket No. : 100B14HNo. of Teeth : 14Diameters Outside : 6.23Diameters Pitch : 5.617Bore Stock : 1.25Bore Max : 2.75Hub Dia. : 4.188Hub L.T.B. : 1.625Wgt. Lbs. : 7.4Add to cart
Part No. : 100B15PLI Sprocket No. : 100B15HNo. of Teeth : 15Diameters Outside : 6.63Diameters Pitch : 6.012Bore Stock : 1.25Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 1.75Wgt. Lbs. : 9.2Add to cart
Part No. : 100B16PLI Sprocket No. : 100B16HNo. of Teeth : 16Diameters Outside : 7.03Diameters Pitch : 6.407Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 1.75Wgt. Lbs. : 9.9Add to cart
Part No. : 100B17PLI Sprocket No. : 100B17HNo. of Teeth : 17Diameters Outside : 7.44Diameters Pitch : 6.803Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 1.75Wgt. Lbs. : 10.8Add to cart
Part No. : 100B18PLI Sprocket No. : 100B18HNo. of Teeth : 18Diameters Outside : 7.84Diameters Pitch : 7.198Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 1.75Wgt. Lbs. : 11.5Add to cart
Part No. : 100B19PLI Sprocket No. : 100B19HNo. of Teeth : 19Diameters Outside : 8.24Diameters Pitch : 7.595Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 13.1Add to cart
Part No. : 100B20PLI Sprocket No. : 100B20HNo. of Teeth : 20Diameters Outside : 8.64Diameters Pitch : 7.991Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 14.2Add to cart
Part No. : 100B21PLI Sprocket No. : 100B21HNo. of Teeth : 21Diameters Outside : 9.04Diameters Pitch : 8.387Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 15.3Add to cart
Part No. : 100B22PLI Sprocket No. : 100B22No. of Teeth : 22Diameters Outside : 9.44Diameters Pitch : 8.783Bore Stock : 1.313Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 16.1Add to cart
Part No. : 100B23PLI Sprocket No. : 100B23No. of Teeth : 23Diameters Outside : 9.84Diameters Pitch : 9.18Bore Stock : 1.25Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 17.2Add to cart
Part No. : 100B24PLI Sprocket No. : 100B24No. of Teeth : 24Diameters Outside : 10.25Diameters Pitch : 9.577Bore Stock : 1.25Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 19.2Add to cart
Part No. : 100B25PLI Sprocket No. : 100B25No. of Teeth : 25Diameters Outside : 10.65Diameters Pitch : 9.973Bore Stock : 1.25Bore Max : 3Hub Dia. : 4.5Hub L.T.B. : 2Wgt. Lbs. : 19.5Add to cart
Part No. : 100B26PLI Sprocket No. : 100B26No. of Teeth : 26Diameters Outside : 11.05Diameters Pitch : 10.37Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2Wgt. Lbs. : 21.7Add to cart
Part No. : 100B27PLI Sprocket No. : 100B27No. of Teeth : 27Diameters Outside : 11.44Diameters Pitch : 10.767Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2Wgt. Lbs. : 23Add to cart
Part No. : 100B28PLI Sprocket No. : 100B28No. of Teeth : 28Diameters Outside : 11.84Diameters Pitch : 11.164Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2Wgt. Lbs. : 24.4Add to cart
Part No. : 100B29PLI Sprocket No. : 100B29No. of Teeth : 29Diameters Outside : 12.24Diameters Pitch : 11.561Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2Wgt. Lbs. : 25Add to cart
Part No. : 100B30PLI Sprocket No. : 100B30No. of Teeth : 30Diameters Outside : 12.64Diameters Pitch : 11.958Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2Wgt. Lbs. : 26.9Add to cart
Part No. : 100B32PLI Sprocket No. : 100B32No. of Teeth : 32Diameters Outside : 13.44Diameters Pitch : 12.753Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2Wgt. Lbs. : 29.8Add to cart
Part No. : 100B35PLI Sprocket No. : 100B35No. of Teeth : 35Diameters Outside : 14.64Diameters Pitch : 13.945Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 36.9Add to cart
Part No. : 100B36PLI Sprocket No. : 100B36No. of Teeth : 36Diameters Outside : 15.04Diameters Pitch : 14.342Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 38.6Add to cart
Part No. : 100B38PLI Sprocket No. : 100B38No. of Teeth : 38Diameters Outside : 15.84Diameters Pitch : 15.137Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 41.5Add to cart
Part No. : 100B39PLI Sprocket No. : 100B39No. of Teeth : 39Diameters Outside : 16.23Diameters Pitch : 15.534Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 43.6Add to cart
Part No. : 100B40PLI Sprocket No. : 100B40No. of Teeth : 40Diameters Outside : 16.63Diameters Pitch : 15.932Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 46.9Add to cart
Part No. : 100B42PLI Sprocket No. : 100B42No. of Teeth : 42Diameters Outside : 17.43Diameters Pitch : 16.727Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 50.4Add to cart
Part No. : 100B45PLI Sprocket No. : 100B45No. of Teeth : 45Diameters Outside : 18.63Diameters Pitch : 17.92Bore Stock : 1.25Bore Max : 3.313Hub Dia. : 5Hub L.T.B. : 2.5Wgt. Lbs. : 54Add to cart
Part No. : 100B48PLI Sprocket No. : 100B48No. of Teeth : 48Diameters Outside : 19.82Diameters Pitch : 19.112Bore Stock : 1.5Bore Max : 4Hub Dia. : 6Hub L.T.B. : 2.5Wgt. Lbs. : 66Add to cart

*Has recessed groove in hub for chain clearance. 1 1/4" Pitch, Nominal = 0.692", Maximun bores shown will accommodate standard keyseat & setscrew over Keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle
