PLI - British Standard Roller Chain Connector Links
British Standard
Description

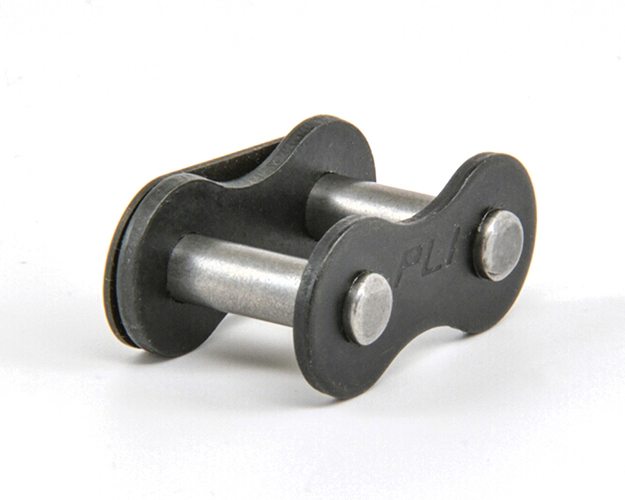

PLI precision roller chain is designed and manufactured to meet or exceed ANSI B29.1 requirements. Commonly used for power transmission purposes, it can be found in a variety of industrial drive systems. PLI roller chains are manufactured to conform to ISO, DIN and BS requirements. PLI Connector Links are used to attached PLI Roller chain and are available in spring clip or cotter pin type.
Model Specifications
Print
| Part No. | PLI C/L No. | Pitch P | Pin Dia. d | Plate Height H | Plate Thickness T | |||
|---|---|---|---|---|---|---|---|---|
| Part No. : PLIMLC04B | PLI C/L No. : C/L 04B | Pitch P : 0.236 | Pin Dia. d : 0.073 | Plate Height H : 0.197 | Plate Thickness T : 0.024 | Add to cart | ||
| Part No. : PLIMLC05B | PLI C/L No. : C/L 05B | Pitch P : 0.315 | Pin Dia. d : 0.091 | Plate Height H : 0.276 | Plate Thickness T : 0.03 | Add to cart | ||
| Part No. : PLIMLC06B | PLI C/L No. : C/L 06B | Pitch P : 0.375 | Pin Dia. d : 0.129 | Plate Height H : 0.319 | Plate Thickness T : 0.049 | Add to cart | ||
| Part No. : PLIMLC06B2 | PLI C/L No. : C/L 06B-2 | Pitch P : 0.375 | Pin Dia. d : 0.129 | Plate Height H : 0.319 | Plate Thickness T : 0.049 | Add to cart | ||
| Part No. : PLIMLC08B | PLI C/L No. : C/L 08B | Pitch P : 0.5 | Pin Dia. d : 0.175 | Plate Height H : 0.465 | Plate Thickness T : 0.059 | Add to cart | ||
| Part No. : PLIMLC08B2 | PLI C/L No. : C/L 08B-2 | Pitch P : 0.5 | Pin Dia. d : 0.175 | Plate Height H : 0.465 | Plate Thickness T : 0.059 | Add to cart | ||
| Part No. : PLIMLC10B | PLI C/L No. : C/L 10B | Pitch P : 0.625 | Pin Dia. d : 0.2 | Plate Height H : 0.575 | Plate Thickness T : 0.065 | Add to cart | ||
| Part No. : PLIMLC10B2 | PLI C/L No. : C/L 10B-2 | Pitch P : 0.625 | Pin Dia. d : 0.2 | Plate Height H : 0.575 | Plate Thickness T : 0.065 | Add to cart | ||
| Part No. : PLIMLC12B | PLI C/L No. : C/L 12B | Pitch P : 0.75 | Pin Dia. d : 0.225 | Plate Height H : 0.63 | Plate Thickness T : 0.073 | Add to cart | ||
| Part No. : PLIMLC12B2 | PLI C/L No. : C/L 12B-2 | Pitch P : 0.75 | Pin Dia. d : 0.225 | Plate Height H : 0.63 | Plate Thickness T : 0.073 | Add to cart | ||
| Part No. : PLIMLC16B | PLI C/L No. : C/L 16B | Pitch P : 1 | Pin Dia. d : 0.326 | Plate Height H : 0.827 | Plate Thickness T : 0.163 | Add to cart | ||
| Part No. : PLIMLC16B2 | PLI C/L No. : C/L 16B-2 | Pitch P : 1 | Pin Dia. d : 0.326 | Plate Height H : 0.827 | Plate Thickness T : 0.163 | Add to cart | ||
| Part No. : PLIMLC20B | PLI C/L No. : C/L 20B | Pitch P : 1.25 | Pin Dia. d : 0.401 | Plate Height H : 1.039 | Plate Thickness T : 0.177 | Add to cart | ||
| Part No. : PLIMLC24B | PLI C/L No. : C/L 24B | Pitch P : 1.5 | Pin Dia. d : 0.576 | Plate Height H : 1.307 | Plate Thickness T : 0.236 | Add to cart | ||
| Part No. : PLIMLC28B | PLI C/L No. : C/L 28B | Pitch P : 1.75 | Pin Dia. d : 0.626 | Plate Height H : 1.445 | Plate Thickness T : 0.295 | Add to cart | ||
| Part No. : PLIMLC32B | PLI C/L No. : C/L 32B | Pitch P : 2 | Pin Dia. d : 0.701 | Plate Height H : 1.653 | Plate Thickness T : 0.276 | Add to cart | ||
