Type "A" Sprockets 35 Chain

35 A Type Roller Chain Sprockets

Description

PLI A TYPE SPROCKETS

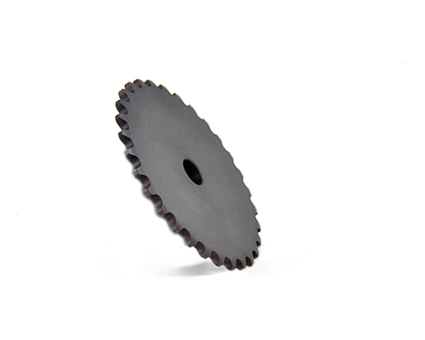

All PLI sprockets are manufactured using the ISO 9001 quality management system. A type sprockets have a stock bore and usually require some altering before installation. A Type sprockets are a flat plate that have no hub. The teeth are not hardened.

Download data sheet

Model Specifications

Print

Type "A" Sprockets 35 Chain

Part No.No. of TeethOutside DiameterPitch DiameterStock BoreWgt. Lbs.
Part No.:
35A10
No. of Teeth:
10
Outside Diameter:
1.380"
Pitch Diameter:
1.214"
Stock Bore:
3/8"
Wgt. Lbs.:
0.08
Part No.:
35A11
No. of Teeth:
11
Outside Diameter:
1.500"
Pitch Diameter:
1.331"
Stock Bore:
3/8"
Wgt. Lbs.:
0.08
Part No.:
35A12
No. of Teeth:
12
Outside Diameter:
1.630"
Pitch Diameter:
1.449"
Stock Bore:
3/8"
Wgt. Lbs.:
0.09
Part No.:
35A13
No. of Teeth:
13
Outside Diameter:
1.750"
Pitch Diameter:
1.567"
Stock Bore:
3/8"
Wgt. Lbs.:
0.09
Part No.:
35A14
No. of Teeth:
14
Outside Diameter:
1.870"
Pitch Diameter:
1.685"
Stock Bore:
3/8"
Wgt. Lbs.:
0.1
Part No.:
35A15
No. of Teeth:
15
Outside Diameter:
1.990"
Pitch Diameter:
1.804"
Stock Bore:
1/2"
Wgt. Lbs.:
0.1
Part No.:
35A16
No. of Teeth:
16
Outside Diameter:
2.110"
Pitch Diameter:
1.922"
Stock Bore:
1/2"
Wgt. Lbs.:
0.12
Part No.:
35A17
No. of Teeth:
17
Outside Diameter:
2.330"
Pitch Diameter:
2.041"
Stock Bore:
1/2"
Wgt. Lbs.:
0.12
Part No.:
35A18
No. of Teeth:
18
Outside Diameter:
2.350"
Pitch Diameter:
2.159"
Stock Bore:
1/2"
Wgt. Lbs.:
0.14
Part No.:
35A19
No. of Teeth:
19
Outside Diameter:
2.470"
Pitch Diameter:
2.278"
Stock Bore:
1/2"
Wgt. Lbs.:
0.16
Part No.:
35A20
No. of Teeth:
20
Outside Diameter:
2.590"
Pitch Diameter:
2.397"
Stock Bore:
1/2"
Wgt. Lbs.:
0.2
Part No.:
35A21
No. of Teeth:
21
Outside Diameter:
2.710"
Pitch Diameter:
2.516"
Stock Bore:
1/2"
Wgt. Lbs.:
0.2
Part No.:
35A22
No. of Teeth:
22
Outside Diameter:
2.830"
Pitch Diameter:
2.635"
Stock Bore:
1/2"
Wgt. Lbs.:
0.22
Part No.:
35A23
No. of Teeth:
23
Outside Diameter:
2.950"
Pitch Diameter:
2.754"
Stock Bore:
1/2"
Wgt. Lbs.:
0.24
Part No.:
35A24
No. of Teeth:
24
Outside Diameter:
3.070"
Pitch Diameter:
2.873"
Stock Bore:
1/2"
Wgt. Lbs.:
0.26
Part No.:
35A25
No. of Teeth:
25
Outside Diameter:
3.190"
Pitch Diameter:
2.992"
Stock Bore:
1/2"
Wgt. Lbs.:
0.28
Part No.:
35A26
No. of Teeth:
26
Outside Diameter:
3.31"
Pitch Diameter:
3.111"
Stock Bore:
1/2"
Wgt. Lbs.:
0.28
Part No.:
35A27
No. of Teeth:
27
Outside Diameter:
3.430"
Pitch Diameter:
3.230"
Stock Bore:
1/2"
Wgt. Lbs.:
0.34
Part No.:
35A28
No. of Teeth:
28
Outside Diameter:
3.550"
Pitch Diameter:
3.349"
Stock Bore:
1/2"
Wgt. Lbs.:
0.34
Part No.:
35A29
No. of Teeth:
29
Outside Diameter:
3.670"
Pitch Diameter:
3.468"
Stock Bore:
1/2"
Wgt. Lbs.:
0.38
Part No.:
35A30
No. of Teeth:
30
Outside Diameter:
3.790"
Pitch Diameter:
3.588"
Stock Bore:
1/2"
Wgt. Lbs.:
0.46
Part No.:
35A31
No. of Teeth:
31
Outside Diameter:
3.910"
Pitch Diameter:
3.707"
Stock Bore:
1/2"
Wgt. Lbs.:
0.46
Part No.:
35A32
No. of Teeth:
32
Outside Diameter:
4.030"
Pitch Diameter:
3.826"
Stock Bore:
5/8"
Wgt. Lbs.:
0.46
Part No.:
35A33
No. of Teeth:
33
Outside Diameter:
4.150"
Pitch Diameter:
3.945"
Stock Bore:
5/8"
Wgt. Lbs.:
0.49
Part No.:
35A34
No. of Teeth:
34
Outside Diameter:
4.270"
Pitch Diameter:
4.064"
Stock Bore:
5/8"
Wgt. Lbs.:
0.54
Part No.:
35A35
No. of Teeth:
35
Outside Diameter:
4.390"
Pitch Diameter:
4.183"
Stock Bore:
5/8"
Wgt. Lbs.:
0.6
Part No.:
35A36
No. of Teeth:
36
Outside Diameter:
4.510"
Pitch Diameter:
4.303"
Stock Bore:
5/8"
Wgt. Lbs.:
0.62
Part No.:
35A37
No. of Teeth:
37
Outside Diameter:
4.630"
Pitch Diameter:
4.422"
Stock Bore:
5/8"
Wgt. Lbs.:
0.64
Part No.:
35A38
No. of Teeth:
38
Outside Diameter:
4.750"
Pitch Diameter:
4.541"
Stock Bore:
5/8"
Wgt. Lbs.:
0.66
Part No.:
35A39
No. of Teeth:
39
Outside Diameter:
4.870"
Pitch Diameter:
4.660"
Stock Bore:
5/8"
Wgt. Lbs.:
0.68
Part No.:
35A40
No. of Teeth:
40
Outside Diameter:
4.990"
Pitch Diameter:
4.780"
Stock Bore:
19/32"
Wgt. Lbs.:
0.7
Part No.:
35A41
No. of Teeth:
41
Outside Diameter:
5.110"
Pitch Diameter:
4.899"
Stock Bore:
19/32"
Wgt. Lbs.:
0.72
Part No.:
35A42
No. of Teeth:
42
Outside Diameter:
5.230"
Pitch Diameter:
5.018"
Stock Bore:
19/32"
Wgt. Lbs.:
0.75
Part No.:
35A43
No. of Teeth:
43
Outside Diameter:
5.350"
Pitch Diameter:
5.137"
Stock Bore:
19/32"
Wgt. Lbs.:
0.78
Part No.:
35A44
No. of Teeth:
44
Outside Diameter:
5.470"
Pitch Diameter:
5.256"
Stock Bore:
19/32"
Wgt. Lbs.:
0.84
Part No.:
35A45
No. of Teeth:
45
Outside Diameter:
5.590"
Pitch Diameter:
5.376"
Stock Bore:
19/32"
Wgt. Lbs.:
0.88
Part No.:
35A46
No. of Teeth:
46
Outside Diameter:
5.710"
Pitch Diameter:
5.495"
Stock Bore:
19/32"
Wgt. Lbs.:
0.98
Part No.:
35A47
No. of Teeth:
47
Outside Diameter:
5.830"
Pitch Diameter:
5.614"
Stock Bore:
19/32"
Wgt. Lbs.:
1.1
Part No.:
35A48
No. of Teeth:
48
Outside Diameter:
5.950"
Pitch Diameter:
5.734"
Stock Bore:
19/32"
Wgt. Lbs.:
1.21
Part No.:
35A49
No. of Teeth:
49
Outside Diameter:
6.070"
Pitch Diameter:
5.853"
Stock Bore:
19/32"
Wgt. Lbs.:
1.25
Part No.:
35A50
No. of Teeth:
50
Outside Diameter:
6.190"
Pitch Diameter:
5.972"
Stock Bore:
19/32"
Wgt. Lbs.:
1.27
Part No.:
35A54
No. of Teeth:
54
Outside Diameter:
6.660"
Pitch Diameter:
6.449"
Stock Bore:
19/32"
Wgt. Lbs.:
1.32
Part No.:
35A60
No. of Teeth:
60
Outside Diameter:
7.380"
Pitch Diameter:
7.165"
Stock Bore:
23/32"
Wgt. Lbs.:
1.66
Part No.:
35A70
No. of Teeth:
70
Outside Diameter:
8.580"
Pitch Diameter:
8.358"
Stock Bore:
23/32"
Wgt. Lbs.:
2.3
Part No.:
35A72
No. of Teeth:
72
Outside Diameter:
8.810"
Pitch Diameter:
8.597"
Stock Bore:
23/32"
Wgt. Lbs.:
2.56
Part No.:
35A80
No. of Teeth:
80
Outside Diameter:
9.770"
Pitch Diameter:
9.552"
Stock Bore:
23/32"
Wgt. Lbs.:
3.16
Part No.:
35A84
No. of Teeth:
84
Outside Diameter:
10.250"
Pitch Diameter:
10.029"
Stock Bore:
23/32"
Wgt. Lbs.:
3.26
Part No.:
35A96
No. of Teeth:
96
Outside Diameter:
11.680"
Pitch Diameter:
11.461"
Stock Bore:
23/32"
Wgt. Lbs.:
4.64
Part No.:
35A112
No. of Teeth:
112
Outside Diameter:
13.590"
Pitch Diameter:
13.371"
Stock Bore:
23/32"
Wgt. Lbs.:
5.05

3/8" Pitch, Nominal=0.168"
