Weld-On Sprockets Chain 35
35 Weld On Roller Chain Type Sprockets
Description
WELD-ON TYPE SPROCKETS

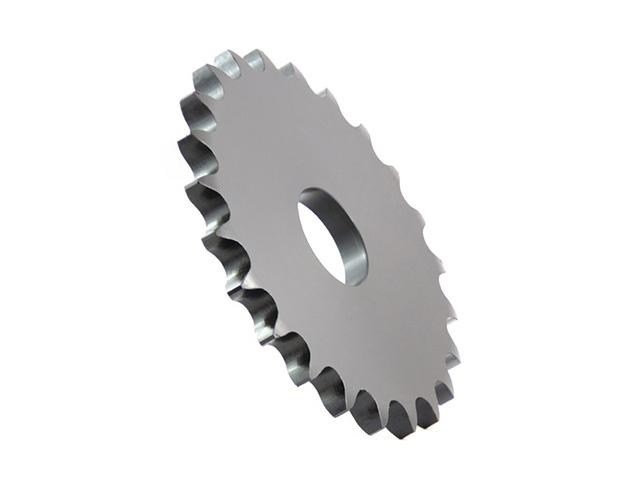

All PLI sprockets are manufactured using the ISO 9001 quality management system. PLI Weld-on type sprockets are a flat plate and have no hub. These plates are bored to accept either a V, W or X weld-on hub depending on the size. The teeth will be hardened on sprockets with 40 or fewer teeth.
Model Specifications
Print
Weld-On Sprockets Chain 35
| Part No. | Part Description | No. of Teeth | Outside Diameter | Pitch Diameter | Bore | Wgt. Lbs. | |||
|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
35V12 |
Part Description:
35V12H |
No. of Teeth:
12 |
Outside Diameter:
1.630" |
Pitch Diameter:
1.449" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.08 |
|||
|
Part No.:
35V13 |
Part Description:
35V13H |
No. of Teeth:
13 |
Outside Diameter:
1.750" |
Pitch Diameter:
1.567" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.09 |
|||
|
Part No.:
35V14 |
Part Description:
35V14H |
No. of Teeth:
14 |
Outside Diameter:
1.870" |
Pitch Diameter:
1.685" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.1 |
|||
|
Part No.:
35V15 |
Part Description:
35V15H |
No. of Teeth:
15 |
Outside Diameter:
1.990" |
Pitch Diameter:
1.804" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.1 |
|||
|
Part No.:
35V16 |
Part Description:
35V16H |
No. of Teeth:
16 |
Outside Diameter:
2.110" |
Pitch Diameter:
1.922" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.12 |
|||
|
Part No.:
35V17 |
Part Description:
35V17H |
No. of Teeth:
17 |
Outside Diameter:
2.230" |
Pitch Diameter:
2.041" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.12 |
|||
|
Part No.:
35V18 |
Part Description:
35V18H |
No. of Teeth:
18 |
Outside Diameter:
2.350" |
Pitch Diameter:
2.159" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.14 |
|||
|
Part No.:
35V19 |
Part Description:
35V19H |
No. of Teeth:
19 |
Outside Diameter:
2.470" |
Pitch Diameter:
2.278" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.16 |
|||
|
Part No.:
35V20 |
Part Description:
35V20H |
No. of Teeth:
20 |
Outside Diameter:
2.590" |
Pitch Diameter:
2.397" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.2 |
|||
|
Part No.:
35V21 |
Part Description:
35V21H |
No. of Teeth:
21 |
Outside Diameter:
2.710" |
Pitch Diameter:
2.516" |
Bore:
1 1/8" |
Wgt. Lbs.:
0.2 |
|||
|
Part No.:
35W22 |
Part Description:
35W22H |
No. of Teeth:
22 |
Outside Diameter:
2.830" |
Pitch Diameter:
2.635" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.22 |
|||
|
Part No.:
35W23 |
Part Description:
35W23H |
No. of Teeth:
23 |
Outside Diameter:
2.950" |
Pitch Diameter:
2.754" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.24 |
|||
|
Part No.:
35W24 |
Part Description:
35W24H |
No. of Teeth:
24 |
Outside Diameter:
3.070" |
Pitch Diameter:
2.873" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.26 |
|||
|
Part No.:
35W25 |
Part Description:
35W25H |
No. of Teeth:
25 |
Outside Diameter:
3.190" |
Pitch Diameter:
2.992" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.28 |
|||
|
Part No.:
35W26 |
Part Description:
35W26H |
No. of Teeth:
26 |
Outside Diameter:
3.310" |
Pitch Diameter:
3.111" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.28 |
|||
|
Part No.:
35W27 |
Part Description:
35W27H |
No. of Teeth:
27 |
Outside Diameter:
3.430" |
Pitch Diameter:
3.230" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.34 |
|||
|
Part No.:
35W28 |
Part Description:
35W28H |
No. of Teeth:
28 |
Outside Diameter:
3.550" |
Pitch Diameter:
3.349" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.34 |
|||
|
Part No.:
35W29 |
Part Description:
35W29H |
No. of Teeth:
29 |
Outside Diameter:
3.660" |
Pitch Diameter:
3.468" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.4 |
|||
|
Part No.:
35W30 |
Part Description:
35W30H |
No. of Teeth:
30 |
Outside Diameter:
3.790" |
Pitch Diameter:
3.588" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.46 |
|||
|
Part No.:
35W32 |
Part Description:
35W32H |
No. of Teeth:
32 |
Outside Diameter:
4.030" |
Pitch Diameter:
3.826" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.53 |
|||
|
Part No.:
35W35 |
Part Description:
35W35H |
No. of Teeth:
35 |
Outside Diameter:
4.390" |
Pitch Diameter:
4.183" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.6 |
|||
|
Part No.:
35W36 |
Part Description:
35W36H |
No. of Teeth:
36 |
Outside Diameter:
4.510" |
Pitch Diameter:
4.303" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.62 |
|||
|
Part No.:
35W40 |
Part Description:
35W40H |
No. of Teeth:
40 |
Outside Diameter:
4.990" |
Pitch Diameter:
4.780" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.7 |
|||
|
Part No.:
35W45 |
Part Description:
35W45 |
No. of Teeth:
45 |
Outside Diameter:
5.590" |
Pitch Diameter:
5.376" |
Bore:
1 5/8" |
Wgt. Lbs.:
0.88 |
|||
|
Part No.:
35W48 |
Part Description:
35W48 |
No. of Teeth:
48 |
Outside Diameter:
5.950" |
Pitch Diameter:
5.734" |
Bore:
1 5/8" |
Wgt. Lbs.:
1.21 |
|||
|
Part No.:
35W50 |
Part Description:
35W50 |
No. of Teeth:
50 |
Outside Diameter:
6.180" |
Pitch Diameter:
5.972" |
Bore:
1 5/8" |
Wgt. Lbs.:
1.25 |
|||
|
Part No.:
35W54 |
Part Description:
35W54 |
No. of Teeth:
54 |
Outside Diameter:
6.660" |
Pitch Diameter:
6.449" |
Bore:
1 5/8" |
Wgt. Lbs.:
1.32 |
|||
|
Part No.:
35W60 |
Part Description:
35W60 |
No. of Teeth:
60 |
Outside Diameter:
7.380" |
Pitch Diameter:
7.165" |
Bore:
1 5/8" |
Wgt. Lbs.:
1.66 |
|||
|
Part No.:
35W70 |
Part Description:
35W70 |
No. of Teeth:
70 |
Outside Diameter:
8.580" |
Pitch Diameter:
8.358" |
Bore:
1 5/8" |
Wgt. Lbs.:
2.3 |
|||
|
Part No.:
35W72 |
Part Description:
35W72 |
No. of Teeth:
72 |
Outside Diameter:
8.810" |
Pitch Diameter:
8.597" |
Bore:
1 5/8" |
Wgt. Lbs.:
2.56 |
|||
|
Part No.:
35W84 |
Part Description:
35W84 |
No. of Teeth:
84 |
Outside Diameter:
10.250" |
Pitch Diameter:
10.029" |
Bore:
1 5/8" |
Wgt. Lbs.:
3.26 |
|||
|
Part No.:
35W96 |
Part Description:
35W96 |
No. of Teeth:
96 |
Outside Diameter:
11.680" |
Pitch Diameter:
11.461" |
Bore:
1 5/8" |
Wgt. Lbs.:
4.64 |
|||
3/8" Pitch, Nominal = 0.126"
