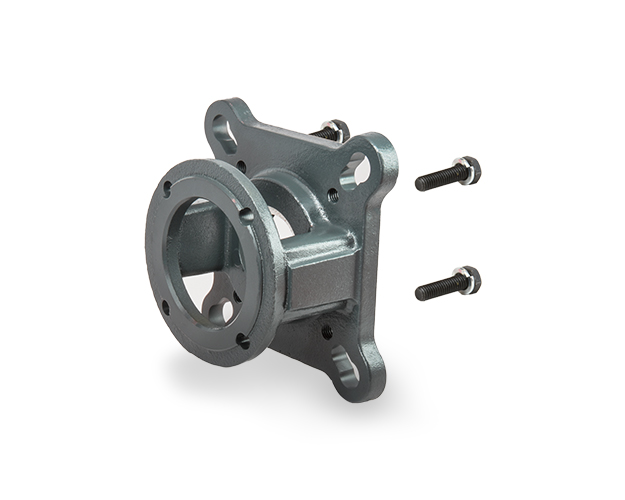

Shaft Mount Flange Adaptor Without Output Shaft
Flange Adaptors Without Output Shaft
Description
Model Specifications
Print
| Part No. | Size | DRIVE SHAFT DIA. | J | K | A | FIG | |||
|---|---|---|---|---|---|---|---|---|---|
| Part No. : SMR2FA | Size : 2 | DRIVE SHAFT DIA. : 1 1/2 - 2 - 2 7/16 - 3 | J : 4 - 5 1/8 - 5 5/8 - 6 | K : 1/2-13UNC - 5/8 - 3/4 | A : 7.75 | FIG : 1 | Add to cart | ||
| Part No. : SMR3FA | Size : 3 | DRIVE SHAFT DIA. : 1 1/2 - 2 - 2 7/16 - 3 | J : 4 - 5 1/8 - 5 5/8 - 6 | K : 1/2-13UNC - 5/8 - 3/4 | A : 8.5 | FIG : 1 | Add to cart | ||
| Part No. : SMR4FA | Size : 4 | DRIVE SHAFT DIA. : 1 1/2 - 2 - 2 7/16 - 3 - 3 7/16 | J : 4 - 5 1/8 - 5 5/8 - 6 - 6 3/4 | K : 1/2-13UNC - 5/8 - 3/4 | A : 9.26 | FIG : 1 | Add to cart | ||
| Part No. : SMR5FA | Size : 5 | DRIVE SHAFT DIA. : 2 - 2 7/16 - 3 - 3 7/16 | J : 5 1/8 - 5 5/8 - 6 - 6 3/4 | K : 5/8 - 3/4 | A : 9.26 | FIG : 2 | Add to cart | ||
