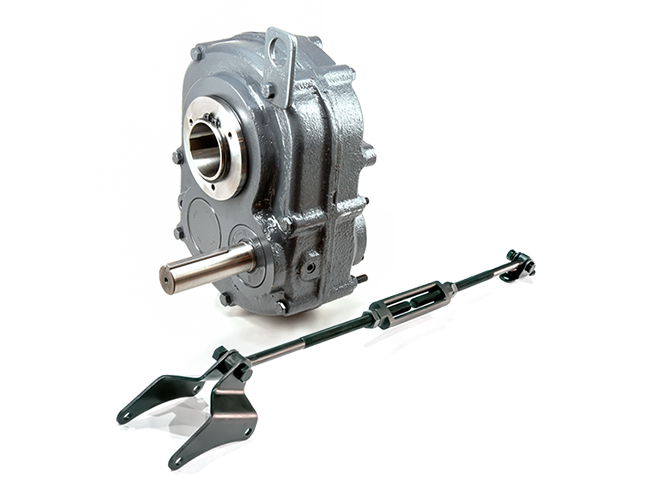

Shaft Mount Speed Reducer With Torque Arm
| Part No. | Size | A1 | A2 | A3 | H | B MAX | C | E | F | KEY | G | H | L | M | N | P | Q | R-MIN | R-MAX | T | U | V | W | X | Y | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
SMR515 |
Size:
5 |
A1:
3.03 |
A2:
6.43 |
A3:
5.67 |
H:
6.57 |
B MAX:
2.938 |
C:
1.81 |
E:
5.63 |
F:
1.938 |
KEY:
1/2X1/4X4 1/2 |
G:
3.29 |
H:
6.54 |
L:
13.15 |
M:
18.31 |
N:
10.89 |
P:
0.67 |
Q:
5.72 |
R-MIN:
29.19 |
R-MAX:
35.19 |
T:
4 |
U:
1.34 |
V:
4.47 |
W:
1.23 |
X:
5.19 |
Y:
1.92 |
|||
|
Part No.:
SMR525 |
Size:
5 |
A1:
3.03 |
A2:
6.43 |
A3:
5.67 |
H:
6.57 |
B MAX:
2.938 |
C:
1.81 |
E:
5.63 |
F:
1.938 |
KEY:
1/2X1/4X4 1/2 |
G:
3.29 |
H:
6.54 |
L:
13.15 |
M:
18.31 |
N:
10.89 |
P:
0.67 |
Q:
5.72 |
R-MIN:
29.19 |
R-MAX:
35.19 |
T:
4 |
U:
1.34 |
V:
4.47 |
W:
1.23 |
X:
5.19 |
Y:
1.92 |
|||
