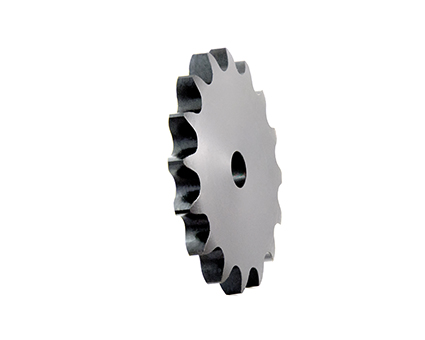

Size 50 "A" Type Sprockets

50 A Type Roller Chain Sprockets

Description

PLI A TYPE SPROCKETS

All PLI sprockets are manufactured using the ISO 9001 quality management system. A type sprockets have a stock bore and usually require some altering before installation. A Type sprockets are a flat plate that have no hub. The teeth are not hardened.

Download data sheet

Model Specifications

Print

Size 50 "A" Type Sprockets

Part No.Part DescriptionNo. of TeethOutside DiameterPitch DiameterStock BoreWgt. Lbs.
Part No.:
50A09
Part Description:
50A09H
No. of Teeth:
9
Outside Diameter:
2.090"
Pitch Diameter:
1.827"
Stock Bore:
5/8"
Wgt. Lbs.:
0.24
Part No.:
50A10
Part Description:
50A10H
No. of Teeth:
10
Outside Diameter:
2.300"
Pitch Diameter:
2.023"
Stock Bore:
5/8"
Wgt. Lbs.:
0.28
Part No.:
50A11
Part Description:
50A11H
No. of Teeth:
11
Outside Diameter:
2.500"
Pitch Diameter:
2.219"
Stock Bore:
5/8"
Wgt. Lbs.:
0.3
Part No.:
50A12
Part Description:
50A12H
No. of Teeth:
12
Outside Diameter:
2.710"
Pitch Diameter:
2.415"
Stock Bore:
5/8"
Wgt. Lbs.:
0.34
Part No.:
50A13
Part Description:
50A13H
No. of Teeth:
13
Outside Diameter:
2.910"
Pitch Diameter:
2.612"
Stock Bore:
5/8"
Wgt. Lbs.:
0.42
Part No.:
50A14
Part Description:
50A14H
No. of Teeth:
14
Outside Diameter:
3.110"
Pitch Diameter:
2.809"
Stock Bore:
5/8"
Wgt. Lbs.:
0.5
Part No.:
50A15
Part Description:
50A15H
No. of Teeth:
15
Outside Diameter:
3.320"
Pitch Diameter:
3.006"
Stock Bore:
5/8"
Wgt. Lbs.:
0.54
Part No.:
50A16
Part Description:
50A16H
No. of Teeth:
16
Outside Diameter:
3.520"
Pitch Diameter:
3.204"
Stock Bore:
5/8"
Wgt. Lbs.:
0.68
Part No.:
50A17
Part Description:
50A17H
No. of Teeth:
17
Outside Diameter:
3.720"
Pitch Diameter:
3.401"
Stock Bore:
5/8"
Wgt. Lbs.:
0.76
Part No.:
50A18
Part Description:
50A18H
No. of Teeth:
18
Outside Diameter:
3.920"
Pitch Diameter:
3.599"
Stock Bore:
5/8"
Wgt. Lbs.:
0.86
Part No.:
50A19
Part Description:
50A19H
No. of Teeth:
19
Outside Diameter:
4.120"
Pitch Diameter:
3.797"
Stock Bore:
5/8"
Wgt. Lbs.:
0.94
Part No.:
50A20
Part Description:
50A20H
No. of Teeth:
20
Outside Diameter:
4.320"
Pitch Diameter:
3.995"
Stock Bore:
3/4"
Wgt. Lbs.:
1.06
Part No.:
50A21
Part Description:
50A21H
No. of Teeth:
21
Outside Diameter:
4.520"
Pitch Diameter:
4.194"
Stock Bore:
3/4"
Wgt. Lbs.:
1.12
Part No.:
50A22
Part Description:
50A22H
No. of Teeth:
22
Outside Diameter:
4.720"
Pitch Diameter:
4.392"
Stock Bore:
3/4"
Wgt. Lbs.:
1.3
Part No.:
50A23
Part Description:
50A23H
No. of Teeth:
23
Outside Diameter:
4.920"
Pitch Diameter:
4.590"
Stock Bore:
3/4"
Wgt. Lbs.:
1.44
Part No.:
50A24
Part Description:
50A24H
No. of Teeth:
24
Outside Diameter:
5.120"
Pitch Diameter:
4.788"
Stock Bore:
11/16"
Wgt. Lbs.:
1.5
Part No.:
50A25
Part Description:
50A25H
No. of Teeth:
25
Outside Diameter:
5.320"
Pitch Diameter:
4.987"
Stock Bore:
11/16"
Wgt. Lbs.:
1.62
Part No.:
50A26
Part Description:
50A26H
No. of Teeth:
26
Outside Diameter:
5.520"
Pitch Diameter:
5.185"
Stock Bore:
11/16"
Wgt. Lbs.:
1.72
Part No.:
50A27
Part Description:
50A27H
No. of Teeth:
27
Outside Diameter:
5.720"
Pitch Diameter:
5.384"
Stock Bore:
11/16"
Wgt. Lbs.:
1.96
Part No.:
50A28
Part Description:
50A28H
No. of Teeth:
28
Outside Diameter:
5.920"
Pitch Diameter:
5.582"
Stock Bore:
11/16"
Wgt. Lbs.:
2.04
Part No.:
50A29
Part Description:
50A29H
No. of Teeth:
29
Outside Diameter:
6.120"
Pitch Diameter:
5.781"
Stock Bore:
11/16"
Wgt. Lbs.:
2.36
Part No.:
50A30
Part Description:
50A30H
No. of Teeth:
30
Outside Diameter:
6.320"
Pitch Diameter:
5.979"
Stock Bore:
11/16"
Wgt. Lbs.:
2.54
Part No.:
50A31
Part Description:
50A31H
No. of Teeth:
31
Outside Diameter:
6.520"
Pitch Diameter:
6.178"
Stock Bore:
11/16"
Wgt. Lbs.:
2.8
Part No.:
50A32
Part Description:
50A32H
No. of Teeth:
32
Outside Diameter:
6.720"
Pitch Diameter:
6.376"
Stock Bore:
11/16"
Wgt. Lbs.:
2.72
Part No.:
50A33
Part Description:
50A33H
No. of Teeth:
33
Outside Diameter:
6.920"
Pitch Diameter:
6.575"
Stock Bore:
11/16"
Wgt. Lbs.:
3.14
Part No.:
50A34
Part Description:
50A34H
No. of Teeth:
34
Outside Diameter:
7.120"
Pitch Diameter:
6.774"
Stock Bore:
11/16"
Wgt. Lbs.:
3.2
Part No.:
50A35
Part Description:
50A35H
No. of Teeth:
35
Outside Diameter:
7.320"
Pitch Diameter:
6.972"
Stock Bore:
11/16"
Wgt. Lbs.:
3.34
Part No.:
50A36
Part Description:
50A36H
No. of Teeth:
36
Outside Diameter:
7.520"
Pitch Diameter:
7.171"
Stock Bore:
11/16"
Wgt. Lbs.:
3.82
Part No.:
50A37
Part Description:
50A37H
No. of Teeth:
37
Outside Diameter:
7.720"
Pitch Diameter:
7.370"
Stock Bore:
23/32"
Wgt. Lbs.:
3.92
Part No.:
50A38
Part Description:
50A38H
No. of Teeth:
38
Outside Diameter:
7.920"
Pitch Diameter:
7.569"
Stock Bore:
23/32"
Wgt. Lbs.:
4.14
Part No.:
50A39
Part Description:
50A39H
No. of Teeth:
39
Outside Diameter:
8.120"
Pitch Diameter:
7.767"
Stock Bore:
23/32"
Wgt. Lbs.:
4.42
Part No.:
50A40
Part Description:
50A40H
No. of Teeth:
40
Outside Diameter:
8.320"
Pitch Diameter:
7.966"
Stock Bore:
23/32"
Wgt. Lbs.:
4.46
Part No.:
50A41
Part Description:
50A41H
No. of Teeth:
41
Outside Diameter:
8.520"
Pitch Diameter:
8.165"
Stock Bore:
23/32"
Wgt. Lbs.:
4.86
Part No.:
50A42
Part Description:
50A42H
No. of Teeth:
42
Outside Diameter:
8.720"
Pitch Diameter:
8.363"
Stock Bore:
23/32"
Wgt. Lbs.:
4.98
Part No.:
50A43
Part Description:
50A43H
No. of Teeth:
43
Outside Diameter:
8.910"
Pitch Diameter:
8.562"
Stock Bore:
23/32"
Wgt. Lbs.:
5.21
Part No.:
50A44
Part Description:
50A44H
No. of Teeth:
44
Outside Diameter:
9.110"
Pitch Diameter:
8.761"
Stock Bore:
23/32"
Wgt. Lbs.:
5.42
Part No.:
50A45
Part Description:
50A45H
No. of Teeth:
45
Outside Diameter:
9.310"
Pitch Diameter:
8.960"
Stock Bore:
23/32"
Wgt. Lbs.:
5.92
Part No.:
50A46
Part Description:
50A46H
No. of Teeth:
46
Outside Diameter:
9.510"
Pitch Diameter:
9.159"
Stock Bore:
15/16"
Wgt. Lbs.:
6.42
Part No.:
50A47
Part Description:
50A47H
No. of Teeth:
47
Outside Diameter:
9.710"
Pitch Diameter:
9.357"
Stock Bore:
15/16"
Wgt. Lbs.:
6.5
Part No.:
50A48
Part Description:
50A48H
No. of Teeth:
48
Outside Diameter:
9.910"
Pitch Diameter:
9.556"
Stock Bore:
15/16"
Wgt. Lbs.:
6.58
Part No.:
50A49
Part Description:
50A49H
No. of Teeth:
49
Outside Diameter:
10.110"
Pitch Diameter:
9.755"
Stock Bore:
15/16"
Wgt. Lbs.:
7.06
Part No.:
50A50
Part Description:
50A50H
No. of Teeth:
50
Outside Diameter:
10.310"
Pitch Diameter:
9.954"
Stock Bore:
15/16"
Wgt. Lbs.:
7.1
Part No.:
50A51
Part Description:
50A51H
No. of Teeth:
51
Outside Diameter:
10.510"
Pitch Diameter:
10.153"
Stock Bore:
15/16"
Wgt. Lbs.:
7.32
Part No.:
50A52
Part Description:
50A52H
No. of Teeth:
52
Outside Diameter:
10.710"
Pitch Diameter:
10.351"
Stock Bore:
15/16"
Wgt. Lbs.:
7.98
Part No.:
50A53
Part Description:
50A53H
No. of Teeth:
53
Outside Diameter:
10.910"
Pitch Diameter:
10.550"
Stock Bore:
15/16"
Wgt. Lbs.:
8.08
Part No.:
50A54
Part Description:
50A54H
No. of Teeth:
54
Outside Diameter:
11.110"
Pitch Diameter:
10.749"
Stock Bore:
15/16"
Wgt. Lbs.:
8.3
Part No.:
50A55
Part Description:
50A55H
No. of Teeth:
55
Outside Diameter:
11.310"
Pitch Diameter:
11.147"
Stock Bore:
15/16"
Wgt. Lbs.:
8.56
Part No.:
50A56
Part Description:
50A56H
No. of Teeth:
56
Outside Diameter:
11.500"
Pitch Diameter:
11.545"
Stock Bore:
15/16"
Wgt. Lbs.:
8.9
Part No.:
50A57
Part Description:
50A57H
No. of Teeth:
57
Outside Diameter:
11.700"
Pitch Diameter:
11.645"
Stock Bore:
15/16"
Wgt. Lbs.:
9.38
Part No.:
50A58
Part Description:
50A58H
No. of Teeth:
58
Outside Diameter:
11.900"
Pitch Diameter:
11.743"
Stock Bore:
15/16"
Wgt. Lbs.:
10.3
Part No.:
50A59
Part Description:
50A59H
No. of Teeth:
59
Outside Diameter:
12.100"
Pitch Diameter:
11.842"
Stock Bore:
15/16"
Wgt. Lbs.:
10.5
Part No.:
50A60
Part Description:
50A60H
No. of Teeth:
60
Outside Diameter:
12.300"
Pitch Diameter:
11.942"
Stock Bore:
15/16"
Wgt. Lbs.:
10.8
Part No.:
50A70
Part Description:
50A70H
No. of Teeth:
70
Outside Diameter:
14.290"
Pitch Diameter:
13.931"
Stock Bore:
15/16"
Wgt. Lbs.:
14
Part No.:
50A72
Part Description:
50A72H
No. of Teeth:
72
Outside Diameter:
14.690"
Pitch Diameter:
14.329"
Stock Bore:
15/16"
Wgt. Lbs.:
15.24
Part No.:
50A76
Part Description:
50A76H
No. of Teeth:
76
Outside Diameter:
15.486"
Pitch Diameter:
15.124"
Stock Bore:
15/16"
Wgt. Lbs.:
20.08
Part No.:
50A80
Part Description:
50A80H
No. of Teeth:
80
Outside Diameter:
16.280"
Pitch Diameter:
15.920"
Stock Bore:
15/16"
Wgt. Lbs.:
21
Part No.:
50A84
Part Description:
50A84H
No. of Teeth:
84
Outside Diameter:
17.080"
Pitch Diameter:
16.715"
Stock Bore:
15/16"
Wgt. Lbs.:
22.08
Part No.:
50A96
Part Description:
50A96H
No. of Teeth:
96
Outside Diameter:
19.470"
Pitch Diameter:
19.102"
Stock Bore:
15/16"
Wgt. Lbs.:
27.4
Part No.:
50A112
Part Description:
50A112
No. of Teeth:
112
Outside Diameter:
22.650"
Pitch Diameter:
22.285"
Stock Bore:
15/16"
Wgt. Lbs.:
37.7

5/8" Pitch, Nominal = 0.343"
