PLI - Roller Chain Offset Links
ANSI Standard
Description
Model Specifications
Print

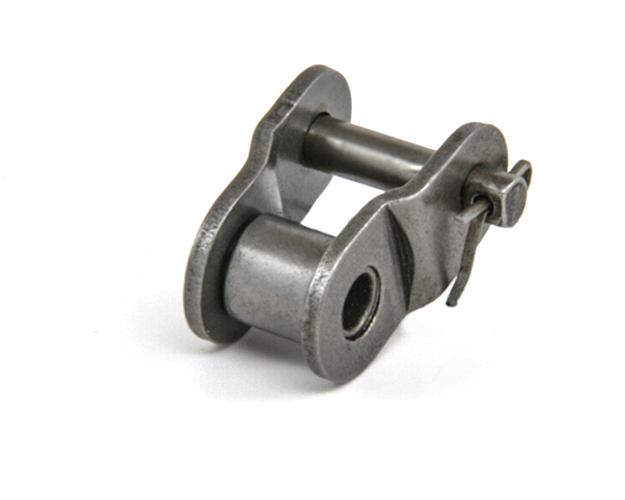

PLI - Roller Chain Offset Links
| Part No. | PLI Chain Desc. | Pitch P | Roller Diameter D | Roller width W | Pin Diameter d | Plate Height H | Plate Thickness T | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
PLILO025 |
PLI Chain Desc.:
O/L 25 |
Pitch P:
0.25 |
Roller Diameter D:
0.13 |
Roller width W:
0.125 |
Pin Diameter d:
0.091 |
Plate Height H:
0.236 |
Plate Thickness T:
0.03 |
|||
|
Part No.:
PLILO035 |
PLI Chain Desc.:
O/L 35 |
Pitch P:
0.375 |
Roller Diameter D:
0.2 |
Roller width W:
0.188 |
Pin Diameter d:
0.141 |
Plate Height H:
0.347 |
Plate Thickness T:
0.05 |
|||
|
Part No.:
PLILO0352 |
PLI Chain Desc.:
O/L 35-2 |
Pitch P:
0.375 |
Roller Diameter D:
0.2 |
Roller width W:
0.188 |
Pin Diameter d:
0.141 |
Plate Height H:
0.347 |
Plate Thickness T:
0.05 |
|||
|
Part No.:
PLILO041 |
PLI Chain Desc.:
O/L 41 |
Pitch P:
0.5 |
Roller Diameter D:
0.306 |
Roller width W:
0.25 |
Pin Diameter d:
0.141 |
Plate Height H:
0.386 |
Plate Thickness T:
0.05 |
|||
|
Part No.:
PLILO040 |
PLI Chain Desc.:
O/L 40 |
Pitch P:
0.5 |
Roller Diameter D:
0.312 |
Roller width W:
0.313 |
Pin Diameter d:
0.156 |
Plate Height H:
0.457 |
Plate Thickness T:
0.06 |
|||
|
Part No.:
PLILO0402 |
PLI Chain Desc.:
O/L 40-2 |
Pitch P:
0.5 |
Roller Diameter D:
0.312 |
Roller width W:
0.313 |
Pin Diameter d:
0.156 |
Plate Height H:
0.457 |
Plate Thickness T:
0.06 |
|||
|
Part No.:
PLILO050 |
PLI Chain Desc.:
O/L 50 |
Pitch P:
0.625 |
Roller Diameter D:
0.4 |
Roller width W:
0.375 |
Pin Diameter d:
0.2 |
Plate Height H:
0.571 |
Plate Thickness T:
0.08 |
|||
|
Part No.:
PLILO0502 |
PLI Chain Desc.:
O/L 50-2 |
Pitch P:
0.625 |
Roller Diameter D:
0.4 |
Roller width W:
0.375 |
Pin Diameter d:
0.2 |
Plate Height H:
0.571 |
Plate Thickness T:
0.08 |
|||
|
Part No.:
PLILO060 |
PLI Chain Desc.:
O/L 60 |
Pitch P:
0.75 |
Roller Diameter D:
0.469 |
Roller width W:
0.5 |
Pin Diameter d:
0.234 |
Plate Height H:
0.689 |
Plate Thickness T:
0.094 |
|||
|
Part No.:
PLILO0602 |
PLI Chain Desc.:
O/L 60-2 |
Pitch P:
0.75 |
Roller Diameter D:
0.469 |
Roller width W:
0.5 |
Pin Diameter d:
0.234 |
Plate Height H:
0.689 |
Plate Thickness T:
0.094 |
|||
|
Part No.:
PLILO0603 |
PLI Chain Desc.:
O/L 60-3 |
Pitch P:
0.75 |
Roller Diameter D:
0.469 |
Roller width W:
0.5 |
Pin Diameter d:
0.234 |
Plate Height H:
0.689 |
Plate Thickness T:
0.094 |
|||
|
Part No.:
PLILO080 |
PLI Chain Desc.:
O/L 80 |
Pitch P:
1 |
Roller Diameter D:
0.625 |
Roller width W:
0.625 |
Pin Diameter d:
0.312 |
Plate Height H:
0.921 |
Plate Thickness T:
0.125 |
|||
|
Part No.:
PLILO0802 |
PLI Chain Desc.:
O/L 80-2 |
Pitch P:
1 |
Roller Diameter D:
0.625 |
Roller width W:
0.625 |
Pin Diameter d:
0.312 |
Plate Height H:
0.921 |
Plate Thickness T:
0.125 |
|||
|
Part No.:
PLILO0803 |
PLI Chain Desc.:
O/L 80-3 |
Pitch P:
1 |
Roller Diameter D:
0.625 |
Roller width W:
0.625 |
Pin Diameter d:
0.312 |
Plate Height H:
0.921 |
Plate Thickness T:
0.125 |
|||
|
Part No.:
PLILO100 |
PLI Chain Desc.:
O/L 100 |
Pitch P:
1.25 |
Roller Diameter D:
0.75 |
Roller width W:
0.75 |
Pin Diameter d:
0.375 |
Plate Height H:
1.137 |
Plate Thickness T:
0.156 |
|||
|
Part No.:
PLILO1002 |
PLI Chain Desc.:
O/L 100-2 |
Pitch P:
1.25 |
Roller Diameter D:
0.75 |
Roller width W:
0.75 |
Pin Diameter d:
0.375 |
Plate Height H:
1.137 |
Plate Thickness T:
0.156 |
|||
|
Part No.:
PLILO1003 |
PLI Chain Desc.:
O/L 100-3 |
Pitch P:
1.25 |
Roller Diameter D:
0.75 |
Roller width W:
0.75 |
Pin Diameter d:
0.375 |
Plate Height H:
1.137 |
Plate Thickness T:
0.156 |
|||
|
Part No.:
PLILO120 |
PLI Chain Desc.:
O/L 120 |
Pitch P:
1.5 |
Roller Diameter D:
0.875 |
Roller width W:
1 |
Pin Diameter d:
0.437 |
Plate Height H:
1.378 |
Plate Thickness T:
0.187 |
|||
|
Part No.:
PLILO1202 |
PLI Chain Desc.:
O/L 120-2 |
Pitch P:
1.5 |
Roller Diameter D:
0.875 |
Roller width W:
1 |
Pin Diameter d:
0.437 |
Plate Height H:
1.378 |
Plate Thickness T:
0.187 |
|||
|
Part No.:
PLILO140 |
PLI Chain Desc.:
O/L 140 |
Pitch P:
1.75 |
Roller Diameter D:
1 |
Roller width W:
1 |
Pin Diameter d:
0.5 |
Plate Height H:
1.602 |
Plate Thickness T:
0.22 |
|||
|
Part No.:
PLILO160 |
PLI Chain Desc.:
O/L 160 |
Pitch P:
2 |
Roller Diameter D:
1.125 |
Roller width W:
1.25 |
Pin Diameter d:
0.562 |
Plate Height H:
1.839 |
Plate Thickness T:
0.25 |
|||
|
Part No.:
PLILO200 |
PLI Chain Desc.:
O/L 200 |
Pitch P:
2.5 |
Roller Diameter D:
1.562 |
Roller width W:
1.5 |
Pin Diameter d:
0.781 |
Plate Height H:
2.299 |
Plate Thickness T:
0.312 |
|||
|
Part No.:
PLILO240 |
PLI Chain Desc.:
O/L 240 |
Pitch P:
3 |
Roller Diameter D:
1.875 |
Roller width W:
1.875 |
Pin Diameter d:
0.936 |
Plate Height H:
2.85 |
Plate Thickness T:
0.375 |
|||
Please Note: * Rollerless chain, Dimension "D" is identical to the bushing diameter. Dimensions in inches & pounds.
