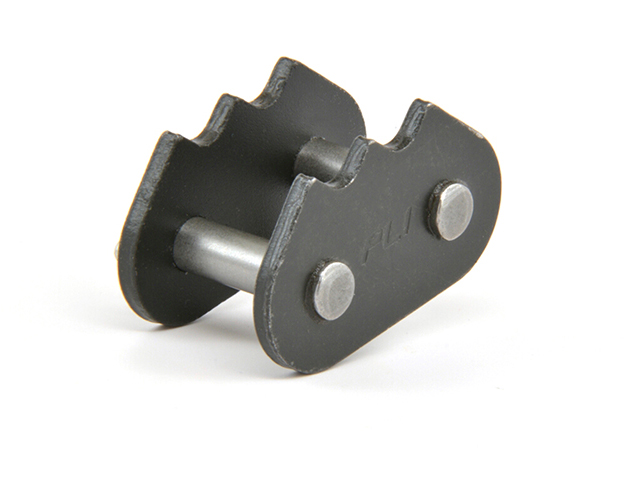

PLI - Sharp Top Connector Links

Sharp-Top

Description


PLI precision roller chain is designed and manufactured to meet or exceed ANSI B29.1 requirements. Commonly used for power transmission purposes, it can be found in a variety of industrial drive systems. PLI roller chains are manufactured to conform to ISO, DIN and BS requirements. PLI Connector Links are used to attached PLI Roller chain and are available in spring clip or cotter pin type.

Model Specifications

Print
Part No.PLI C/L No.Pitch PPin Dia. DPlate Height HPlate Height H1Plate Height H2Plate Height H3Plate Thickness T1Plate Thickness T2Overall Dimension L
Part No. : PLISTLC060PLI C/L No. : C/L 60STPitch P : 0.75Pin Dia. D : 0.234Plate Height H : 0.685Plate Height H1 : 0.85Plate Height H2 : 0.512Plate Height H3 : 0Plate Thickness T1 : 0.094Plate Thickness T2 : -Overall Dimension L : 0.697Add to cart
Part No. : PLISTLC080PLI C/L No. : C/L 80STPitch P : 1Pin Dia. D : 0.312Plate Height H : 0.919Plate Height H1 : 1.137Plate Height H2 : 0.685Plate Height H3 : 0.126Plate Thickness T1 : 0.125Plate Thickness T2 : Overall Dimension L : 1.29Add to cart
Part No. : PLISTLC0802PLI C/L No. : C/L 80-2STPitch P : 1Pin Dia. D : 0.312Plate Height H : 0.919Plate Height H1 : 1.137Plate Height H2 : 0.685Plate Height H3 : 0.126Plate Thickness T1 : 0.125Plate Thickness T2 : 0.25Overall Dimension L : 2.45Add to cart
Part No. : PLISTLC0803PLI C/L No. : C/L 80-3STPitch P : 1Pin Dia. D : 0.312Plate Height H : 0.919Plate Height H1 : 1.137Plate Height H2 : 0.685Plate Height H3 : 0.126Plate Thickness T1 : 0.125Plate Thickness T2 : 0.25Overall Dimension L : 3.61Add to cart
Part No. : PLISTLC0804PLI C/L No. : C/L 80-4STPitch P : 1Pin Dia. D : 0.312Plate Height H : 0.919Plate Height H1 : 1.137Plate Height H2 : 0.685Plate Height H3 : 0.126Plate Thickness T1 : 0.125Plate Thickness T2 : 0.25Overall Dimension L : 4.74Add to cart

Dimensions in inches & pounds.
