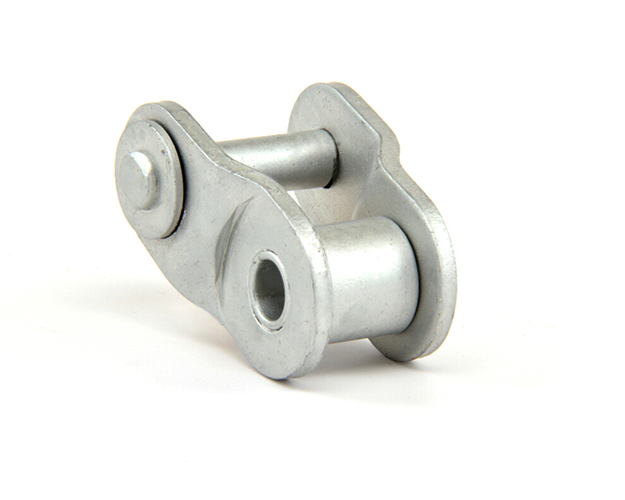

PLI - Anti-Corrosion Offset Links
ANSI Standard
Model Specifications
Print
Part No. | PLI O/L No. | Pitch P | Roller Diameter D | Roller width W | Pin Diameter d | Plate Height H | Plate Thickness T | |||
---|---|---|---|---|---|---|---|---|---|---|
Part No. : PLILO035LQD | PLI O/L No. : 35 LIQUID SERIES | Pitch P : 0.375 | Roller Diameter D : 0.2 | Roller width W : 0.188 | Pin Diameter d : 0.141 | Plate Height H : 0.347 | Plate Thickness T : 0.05 | Add to cart | ||
Part No. : PLILO040LQD | PLI O/L No. : 40 LIQUID SERIES | Pitch P : 0.5 | Roller Diameter D : 0.312 | Roller width W : 0.313 | Pin Diameter d : 0.156 | Plate Height H : 0.457 | Plate Thickness T : 0.06 | Add to cart | ||
Part No. : PLILO080LQD | PLI O/L No. : 80 LIQUID SERIES | Pitch P : 1 | Roller Diameter D : 0.625 | Roller width W : 0.625 | Pin Diameter d : 0.312 | Plate Height H : 0.921 | Plate Thickness T : 0.125 | Add to cart |
Please Note: * Rollerless chain, Dimension "D" is identical to the bushing diameter. Dimensions in inches & pounds.
