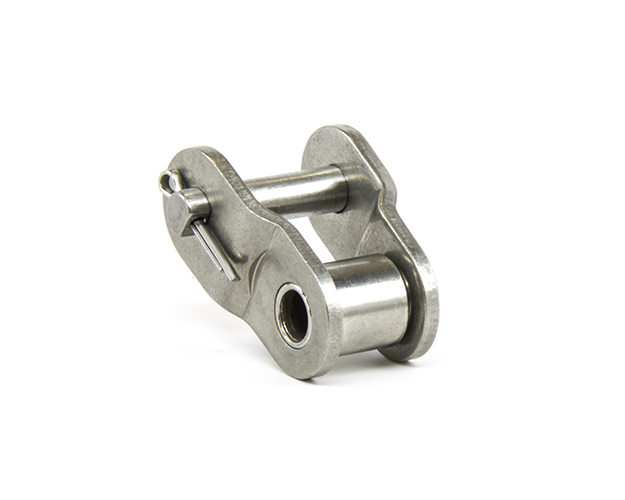

PLI - Anti-Corrosion Offset Links

ANSI Standard

Description

Model Specifications

Print
Part No.PLI O/L No.Pitch PRoller Diameter DRoller width WPin Diameter dPlate Height HPlate Thickness T
Part No. : PLILO025SPLI O/L No. : 25 STAINLESS STEELPitch P : 0.25Roller Diameter D : 0.13Roller width W : 0.125Pin Diameter d : 0.091Plate Height H : 0.236Plate Thickness T : 0.03Add to cart
Part No. : PLILO035SPLI O/L No. : 35 STAINLESS STEELPitch P : 0.375Roller Diameter D : 0.2Roller width W : 0.188Pin Diameter d : 0.141Plate Height H : 0.347Plate Thickness T : 0.05Add to cart
Part No. : PLILO041SPLI O/L No. : 41 STAINLESS STEELPitch P : 0.5Roller Diameter D : 0.306Roller width W : 0.25Pin Diameter d : 0.141Plate Height H : 0.386Plate Thickness T : 0.05Add to cart
Part No. : PLILO040SPLI O/L No. : 40 STAINLESS STEELPitch P : 0.5Roller Diameter D : 0.312Roller width W : 0.313Pin Diameter d : 0.156Plate Height H : 0.457Plate Thickness T : 0.06Add to cart
Part No. : PLILO0402SPLI O/L No. : 40-2 STAINLESS STEELPitch P : 0.5Roller Diameter D : 0.312Roller width W : 0.313Pin Diameter d : 0.156Plate Height H : 0.457Plate Thickness T : 0.06Add to cart
Part No. : PLILO050SPLI O/L No. : 50 STAINLESS STEELPitch P : 0.625Roller Diameter D : 0.4Roller width W : 0.375Pin Diameter d : 0.2Plate Height H : 0.571Plate Thickness T : 0.08Add to cart
Part No. : PLILO060SPLI O/L No. : 60 STAINLESS STEELPitch P : 0.75Roller Diameter D : 0.469Roller width W : 0.5Pin Diameter d : 0.234Plate Height H : 0.689Plate Thickness T : 0.094Add to cart
Part No. : PLILO080SPLI O/L No. : 80 STAINLESS STEELPitch P : 1Roller Diameter D : 0.625Roller width W : 0.625Pin Diameter d : 0.312Plate Height H : 0.921Plate Thickness T : 0.125Add to cart
Part No. : PLILO100SPLI O/L No. : 100 STAINLESS STEELPitch P : 1.25Roller Diameter D : 0.75Roller width W : 0.75Pin Diameter d : 0.375Plate Height H : 1.137Plate Thickness T : 0.156Add to cart

Please Note: * Rollerless chain, Dimension "D" is identical to the bushing diameter. Dimensions in inches & pounds.
