ECC - Heavy Duty Connector Links

Heavy Duty

Description

Model Specifications

Print

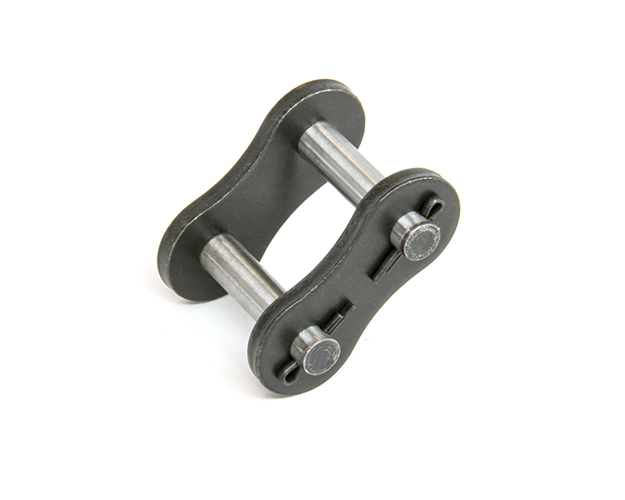

ECC - Heavy Duty Connector Links

Part No.ECC - Part No.Pitch PPin Dia. dPlate Height HPlate Thickness T
Part No.:
ECCLC050H
ECC - Part No.:
C/L 50H
Pitch P:
0.625
Pin Dia. d:
0.2
Plate Height H:
0.59
Plate Thickness T:
0.094
Part No.:
ECCLC060H
ECC - Part No.:
C/L 60H
Pitch P:
0.75
Pin Dia. d:
0.234
Plate Height H:
0.689
Plate Thickness T:
0.125
Part No.:
ECCLC080H
ECC - Part No.:
C/L 80H
Pitch P:
1
Pin Dia. d:
0.312
Plate Height H:
0.945
Plate Thickness T:
0.157
Part No.:
ECCLC100H
ECC - Part No.:
C/L 100H
Pitch P:
1.25
Pin Dia. d:
0.375
Plate Height H:
1.138
Plate Thickness T:
0.185
Part No.:
ECCLC120H
ECC - Part No.:
C/L 120H
Pitch P:
1.5
Pin Dia. d:
0.437
Plate Height H:
1.378
Plate Thickness T:
0.22
Part No.:
ECCLC140H
ECC - Part No.:
C/L 140H
Pitch P:
1.75
Pin Dia. d:
0.5
Plate Height H:
1.61
Plate Thickness T:
0.25
Part No.:
ECCLC160H
ECC - Part No.:
C/L 160H
Pitch P:
2
Pin Dia. d:
0.562
Plate Height H:
1.839
Plate Thickness T:
0.281

Dimensions in inches & pounds.
