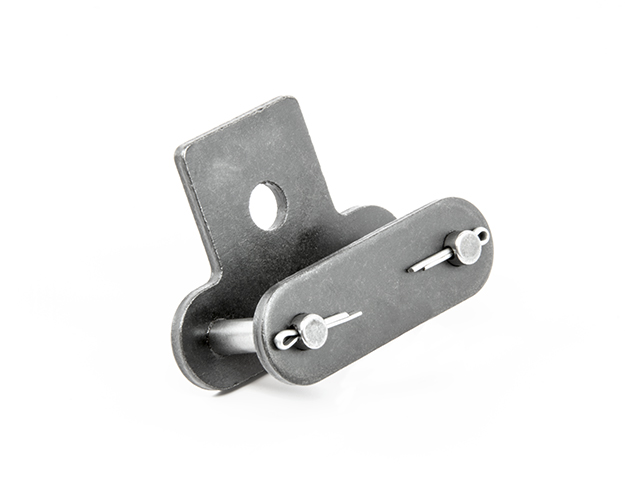

1-Hole Conveyor Chain Attachments
| Part No. | PLI C/L Att. No. | Pitch P | Pin Dia. d | Plate Height H | Plate Thickness T | Att. Width. N | A-1, K-1 C | A-1, K-1 X | A-1, K-1 Y | A-1, K-1 O | SA-1, SK-1 S | SA-1, SK-1 Z | SA-1, SK-1 O | D-5 EXTENDED PIN L | D-5 EXTENDED PIN M | Average Ultimate Strength | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
PLILAC2080SA1 |
PLI C/L Att. No.:
C/L C2080H SA-1 |
Pitch P:
2 |
Pin Dia. d:
0.312 |
Plate Height H:
0.945 |
Plate Thickness T:
0.157 |
Att. Width. N:
1.5 |
A-1, K-1 C:
|
A-1, K-1 X:
|
A-1, K-1 Y:
|
A-1, K-1 O:
|
SA-1, SK-1 S:
0.874 |
SA-1, SK-1 Z:
1.441 |
SA-1, SK-1 O:
0.406 |
D-5 EXTENDED PIN L:
|
D-5 EXTENDED PIN M:
|
Average Ultimate Strength:
16000 |
|||
