1-Hole Conveyor Chain Attachments

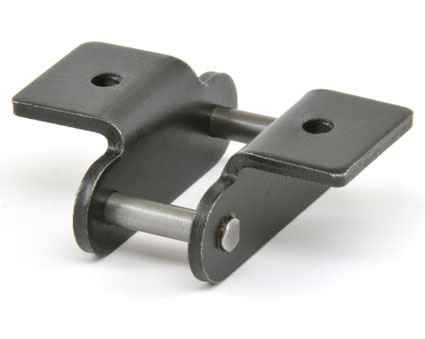

C2100H K-1 Attachment

Download data sheet

Model Specifications

Print
Part No.PLI C/L Att. No.Pitch PPin Dia. dPlate Height HPlate Thickness TAtt. Width. NA-1, K-1 CA-1, K-1 XA-1, K-1 YA-1, K-1 OSA-1, SK-1 SSA-1, SK-1 ZSA-1, SK-1 OD-5 EXTENDED PIN LD-5 EXTENDED PIN MAverage Ultimate Strength
Part No. : PLILAC2100K1PLI C/L Att. No. : C/L C2100H K-1Pitch P : 2.5Pin Dia. d : 0.375Plate Height H : 1.138Plate Thickness T : 0.189Att. Width. N : 1.874A-1, K-1 C : 0.921A-1, K-1 X : 1.313A-1, K-1 Y : 1.768A-1, K-1 O : 0.343SA-1, SK-1 S : SA-1, SK-1 Z : SA-1, SK-1 O : D-5 EXTENDED PIN L : D-5 EXTENDED PIN M : Average Ultimate Strength : 24200Add to cart
