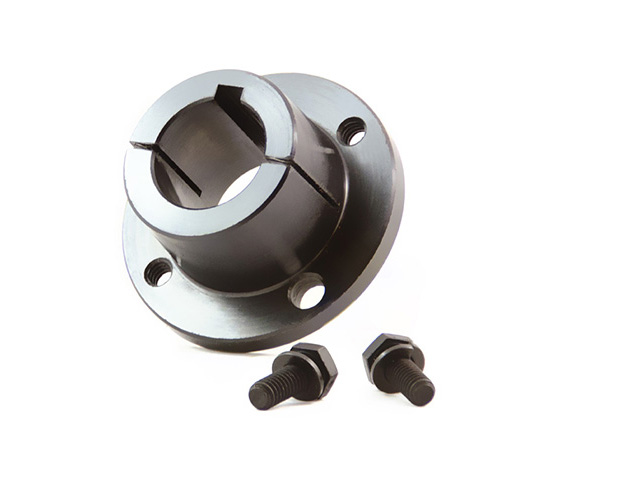

Split-Taper Bushings Finish Bore

Q1 Split Taper Bushings

Description

Download data sheet

Model Specifications

Print
Part No.PLI Bushing No.BoreDimensions (Inches) LDimensions (Inches) UDimensions (Inches) TDimensions (Inches) D Large EndDimensions (Inches) D Small EndDimensions (Inches) HDimensions (Inches) VDimensions (Inches) WDimensions (Inches) XDimensions (Inches) YDimensions (Inches) RDimensions (Inches) SCapscrews NO.Capscrews SIZEAve. Wgt. LBS
Part No. : QQ1100PLI Bushing No. : Q1Bore : 1Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1112PLI Bushing No. : Q1Bore : 1.125Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1118PLI Bushing No. : Q1Bore : 1.188Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1125PLI Bushing No. : Q1Bore : 1.25Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1137PLI Bushing No. : Q1Bore : 1.375Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1143PLI Bushing No. : Q1Bore : 1.438Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1150PLI Bushing No. : Q1Bore : 1.5Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1162PLI Bushing No. : Q1Bore : 1.625Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1168PLI Bushing No. : Q1Bore : 1 11/16Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1175PLI Bushing No. : Q1Bore : 1.75Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1187PLI Bushing No. : Q1Bore : 1.875Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1193PLI Bushing No. : Q1Bore : 1.938Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1200PLI Bushing No. : Q1Bore : 2Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1212PLI Bushing No. : Q1Bore : 2.125Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1218PLI Bushing No. : Q1Bore : 2.188Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1225PLI Bushing No. : Q1Bore : 2.25Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1237PLI Bushing No. : Q1Bore : 2.375Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1243PLI Bushing No. : Q1Bore : 2.438Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1250PLI Bushing No. : Q1Bore : 2.5Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart
Part No. : QQ1268PLI Bushing No. : Q1Bore : 2.688Dimensions (Inches) L : 2.5Dimensions (Inches) U : 0.531Dimensions (Inches) T : 1.969Dimensions (Inches) D Large End : 2.875Dimensions (Inches) D Small End : 2.765Dimensions (Inches) H : 4.125Dimensions (Inches) V : 3.375Dimensions (Inches) W : 0.5Dimensions (Inches) X : 1.75Dimensions (Inches) Y : 0.219Dimensions (Inches) R : 0.219Dimensions (Inches) S : 0.281Capscrews NO. : 3Capscrews SIZE : 5/16 x 1-1/4Ave. Wgt. LBS : 3.5Add to cart

>

  • All bushings are either Steel, or Ductile Iron.
    • <
