Split-Taper Bushings Finish Bore

S1 Split Taper Bushings

Description

Download data sheet

Model Specifications

Print

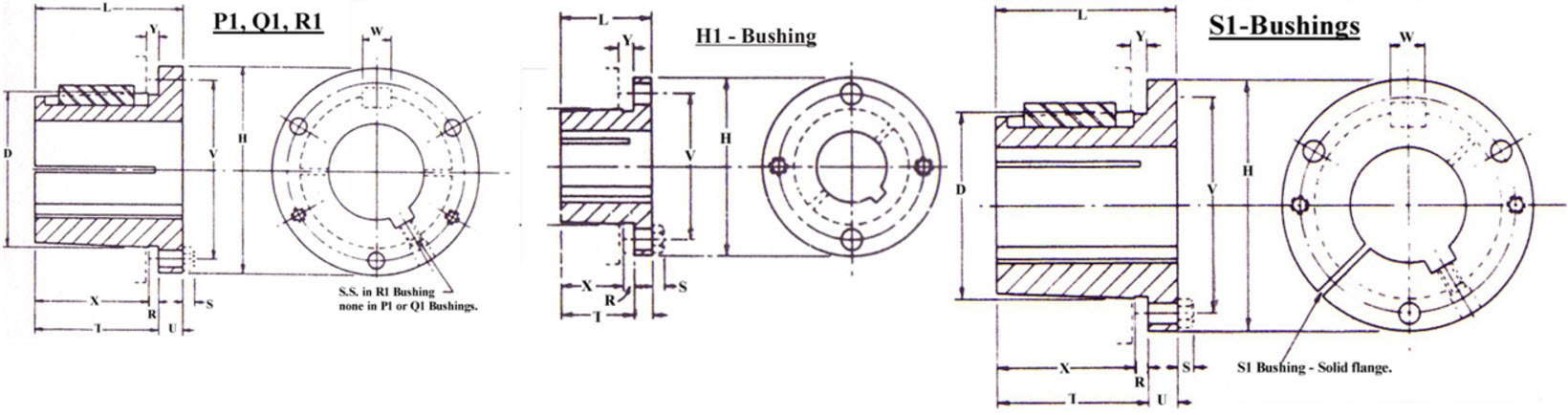

Part No.PLI Bushing No.BoreDimensions (Inches) LDimensions (Inches) UDimensions (Inches) TDimensions (Inches) D Large EndDimensions (Inches) D Small EndDimensions (Inches) HDimensions (Inches) VDimensions (Inches) WDimensions (Inches) XDimensions (Inches) YDimensions (Inches) RDimensions (Inches) SCapscrews NO.Capscrews SIZEAve. Wgt. LBS
Part No. : QS1200PLI Bushing No. : S1Bore : 2Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1212PLI Bushing No. : S1Bore : 2.125Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1218PLI Bushing No. : S1Bore : 2.188Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1225PLI Bushing No. : S1Bore : 2.25Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1237PLI Bushing No. : S1Bore : 2.375Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1243PLI Bushing No. : S1Bore : 2.438Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1250PLI Bushing No. : S1Bore : 2.5Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1275PLI Bushing No. : S1Bore : 2.75Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1293PLI Bushing No. : S1Bore : 2.938Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1300PLI Bushing No. : S1Bore : 3Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1312PLI Bushing No. : S1Bore : 3.125Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1325PLI Bushing No. : S1Bore : 3.25Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1343PLI Bushing No. : S1Bore : 3.438Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1350PLI Bushing No. : S1Bore : 3.5Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart
Part No. : QS1393PLI Bushing No. : S1Bore : 3.938Dimensions (Inches) L : 4.375Dimensions (Inches) U : 0.75Dimensions (Inches) T : 3.625Dimensions (Inches) D Large End : 4.625Dimensions (Inches) D Small End : 4.418Dimensions (Inches) H : 6.375Dimensions (Inches) V : 5.375Dimensions (Inches) W : 0.75Dimensions (Inches) X : 3.833Dimensions (Inches) Y : 0.313Dimensions (Inches) R : 0.313Dimensions (Inches) S : 0.375Capscrews NO. : 3Capscrews SIZE : 1/2 x 2-1/4Ave. Wgt. LBS : 13.5Add to cart

>

  • All bushings are either Steel, or Ductile Iron.
    • <
