XTB Bushings
XTB45 Bushings
Description

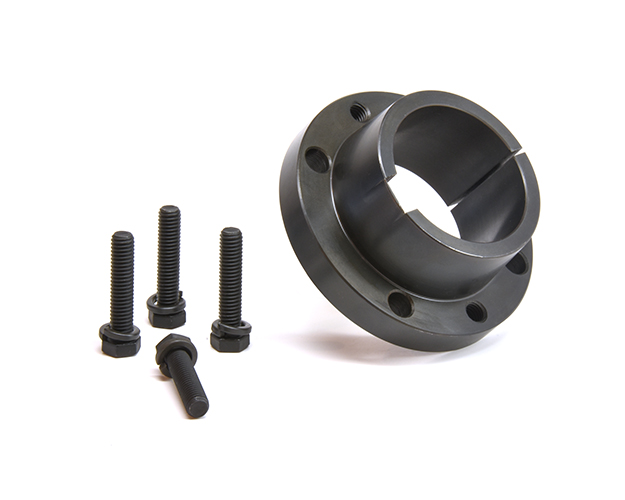

PLI XTB-TYPE BUSHINGS
All PLI bushings are manufactured using the ISO 9001 quality management system. PLI XTB type bushings are to be installed with PLI XTB type weld-on hubs. They offer improved gripping power and
ease of installation and removal specifically designed for HD conveyor applications.
Model Specifications
Print
XTB Bushings
| Part No. | PLI Bushing No. | Bore | Length Thru Bore L | Flange Width B | Flange O.D. | Bolt Height D | Bolt Circles BC | Cap Screws No. | Cap Screw Size | Wt. Lbs | Wrench Torque (Ft./Lbs) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
QXTB45343 |
PLI Bushing No.:
XTB45 |
Bore:
3.438 |
Length Thru Bore L:
3.313 |
Flange Width B:
0.938 |
Flange O.D.:
8 |
Bolt Height D:
0.406 |
Bolt Circles BC:
6.875 |
Cap Screws No.:
4 |
Cap Screw Size:
5/8 X 2 1/4 |
Wt. Lbs:
14.8 |
Wrench Torque (Ft./Lbs):
140 |
|||
|
Part No.:
QXTB45393 |
PLI Bushing No.:
XTB45 |
Bore:
3.938 |
Length Thru Bore L:
3.313 |
Flange Width B:
0.938 |
Flange O.D.:
8 |
Bolt Height D:
0.406 |
Bolt Circles BC:
6.875 |
Cap Screws No.:
4 |
Cap Screw Size:
5/8 X 2 1/4 |
Wt. Lbs:
14.8 |
Wrench Torque (Ft./Lbs):
140 |
|||
|
Part No.:
QXTB45434 |
PLI Bushing No.:
XTB45 |
Bore:
4.438 |
Length Thru Bore L:
3.313 |
Flange Width B:
0.938 |
Flange O.D.:
8 |
Bolt Height D:
0.406 |
Bolt Circles BC:
6.875 |
Cap Screws No.:
4 |
Cap Screw Size:
5/8 X 2 1/4 |
Wt. Lbs:
14.8 |
Wrench Torque (Ft./Lbs):
140 |
|||
