PLI - Leaf Chain "BL" Heavy Duty
BL Series Chain
Description
Leaf chains are mainly used in lifting applications such as forklifts, stackers, and parking garages, and are also used in some industrial manufacturing sectors. PLI Leaf chains include special processing techniques, using high-quality alloy steel, reliable heat treatment processes, and wear-resistant surface treatments. They possess characteristics such as high strength, corrosion resistance, fatigue resistance, and high precision.
Model Specifications
Print
PLI - Leaf Chain "BL" Heavy Duty

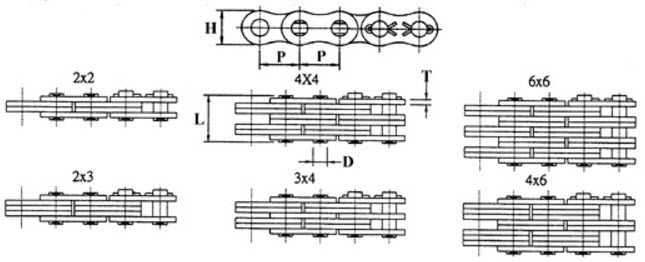

| Part No. | PLI Chain Desc. | Lacing | Pitch P | Plate Height H | Plate Thickness T | Pin Diameter D | Pin Length L | Average Ultimate Strength | Average Weight Per Foot | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
PLIBL434 |
PLI Chain Desc.:
BL-434 |
Lacing:
3 X 4 |
Pitch P:
0.5 |
Plate Height H:
0.472 |
Plate Thickness T:
0.079 |
Pin Diameter D:
0.2 |
Pin Length L:
0.661 |
Average Ultimate Strength:
9900 |
Average Weight Per Foot:
0.72 |
|
|
Part No.:
PLIBL534 |
PLI Chain Desc.:
BL-534 |
Lacing:
3 X 4 |
Pitch P:
0.625 |
Plate Height H:
0.585 |
Plate Thickness T:
0.094 |
Pin Diameter D:
0.234 |
Pin Length L:
0.791 |
Average Ultimate Strength:
15000 |
Average Weight Per Foot:
1.06 |
|
|
Part No.:
PLIBL544 |
PLI Chain Desc.:
BL-544 |
Lacing:
4 X 4 |
Pitch P:
0.625 |
Plate Height H:
0.585 |
Plate Thickness T:
0.094 |
Pin Diameter D:
0.234 |
Pin Length L:
0.892 |
Average Ultimate Strength:
19800 |
Average Weight Per Foot:
1.21 |
|
|
Part No.:
PLIBL546 |
PLI Chain Desc.:
BL-546 |
Lacing:
4 X 6 |
Pitch P:
0.625 |
Plate Height H:
0.585 |
Plate Thickness T:
0.094 |
Pin Diameter D:
0.234 |
Pin Length L:
1.083 |
Average Ultimate Strength:
19800 |
Average Weight Per Foot:
1.5 |
|
|
Part No.:
PLIBL566 |
PLI Chain Desc.:
BL-566 |
Lacing:
6 X 6 |
Pitch P:
0.625 |
Plate Height H:
0.585 |
Plate Thickness T:
0.094 |
Pin Diameter D:
0.234 |
Pin Length L:
1.28 |
Average Ultimate Strength:
29700 |
Average Weight Per Foot:
1.78 |
|
|
Part No.:
PLIBL623 |
PLI Chain Desc.:
BL-623 |
Lacing:
2 X 3 |
Pitch P:
0.75 |
Plate Height H:
0.705 |
Plate Thickness T:
0.124 |
Pin Diameter D:
0.312 |
Pin Length L:
0.762 |
Average Ultimate Strength:
15400 |
Average Weight Per Foot:
1.27 |
|
|
Part No.:
PLIBL634 |
PLI Chain Desc.:
BL-634
|
Lacing:
3 X 4 |
Pitch P:
0.75 |
Plate Height H:
0.705 |
Plate Thickness T:
0.124 |
Pin Diameter D:
0.312 |
Pin Length L:
0.994 |
Average Ultimate Strength:
23100 |
Average Weight Per Foot:
1.71 |
|
|
Part No.:
PLIBL644 |
PLI Chain Desc.:
BL-644 |
Lacing:
4 X 4 |
Pitch P:
0.75 |
Plate Height H:
0.705 |
Plate Thickness T:
0.124 |
Pin Diameter D:
0.312 |
Pin Length L:
1.212 |
Average Ultimate Strength:
30800 |
Average Weight Per Foot:
2.04 |
|
|
Part No.:
PLIBL646 |
PLI Chain Desc.:
BL-646 |
Lacing:
4 X 6 |
Pitch P:
0.75 |
Plate Height H:
0.705 |
Plate Thickness T:
0.124 |
Pin Diameter D:
0.312 |
Pin Length L:
1.476 |
Average Ultimate Strength:
30800 |
Average Weight Per Foot:
2.42 |
|
|
Part No.:
PLIBL666 |
PLI Chain Desc.:
BL-666 |
Lacing:
6 X 6 |
Pitch P:
0.75 |
Plate Height H:
0.705 |
Plate Thickness T:
0.124 |
Pin Diameter D:
0.312 |
Pin Length L:
1.74 |
Average Ultimate Strength:
46200 |
Average Weight Per Foot:
3.08 |
|
|
Part No.:
PLIBL823 |
PLI Chain Desc.:
BL-823 |
Lacing:
2 X 3 |
Pitch P:
1 |
Plate Height H:
0.945 |
Plate Thickness T:
0.154 |
Pin Diameter D:
0.375 |
Pin Length L:
1.003 |
Average Ultimate Strength:
26400 |
Average Weight Per Foot:
2.13 |
|
|
Part No.:
PLIBL834 |
PLI Chain Desc.:
BL-834 |
Lacing:
3 X 4 |
Pitch P:
1 |
Plate Height H:
0.945 |
Plate Thickness T:
0.154 |
Pin Diameter D:
0.375 |
Pin Length L:
1.33 |
Average Ultimate Strength:
39600 |
Average Weight Per Foot:
2.96 |
|
|
Part No.:
PLIBL844 |
PLI Chain Desc.:
BL-844
|
Lacing:
4 X 4 |
Pitch P:
1 |
Plate Height H:
0.945 |
Plate Thickness T:
0.154 |
Pin Diameter D:
0.375 |
Pin Length L:
1.471 |
Average Ultimate Strength:
52800 |
Average Weight Per Foot:
3.33 |
|
|
Part No.:
PLIBL846 |
PLI Chain Desc.:
BL-846
|
Lacing:
4 X 6 |
Pitch P:
1 |
Plate Height H:
0.945 |
Plate Thickness T:
0.154 |
Pin Diameter D:
0.375 |
Pin Length L:
1.772 |
Average Ultimate Strength:
52800 |
Average Weight Per Foot:
4.2 |
|
|
Part No.:
PLIBL866 |
PLI Chain Desc.:
BL-866 |
Lacing:
6 X 6 |
Pitch P:
1 |
Plate Height H:
0.945 |
Plate Thickness T:
0.154 |
Pin Diameter D:
0.375 |
Pin Length L:
2.128 |
Average Ultimate Strength:
79200 |
Average Weight Per Foot:
5.04 |
|
|
Part No.:
PLIBL1034 |
PLI Chain Desc.:
BL-1034 |
Lacing:
3 X 4 |
Pitch P:
1.25 |
Plate Height H:
1.185 |
Plate Thickness T:
0.185 |
Pin Diameter D:
0.437 |
Pin Length L:
1.584 |
Average Ultimate Strength:
52066 |
Average Weight Per Foot:
4.9 |
|
|
Part No.:
PLIBL1066 |
PLI Chain Desc.:
BL-1066 |
Lacing:
6 X 6 |
Pitch P:
1.25 |
Plate Height H:
1.185 |
Plate Thickness T:
0.185 |
Pin Diameter D:
0.437 |
Pin Length L:
2.559 |
Average Ultimate Strength:
105600 |
Average Weight Per Foot:
7.44 |
Dimensions in inches & pounds.
