Double Sprockets Chain 80
80-2 Double Row B Type Roller Chain Sprockets
Description

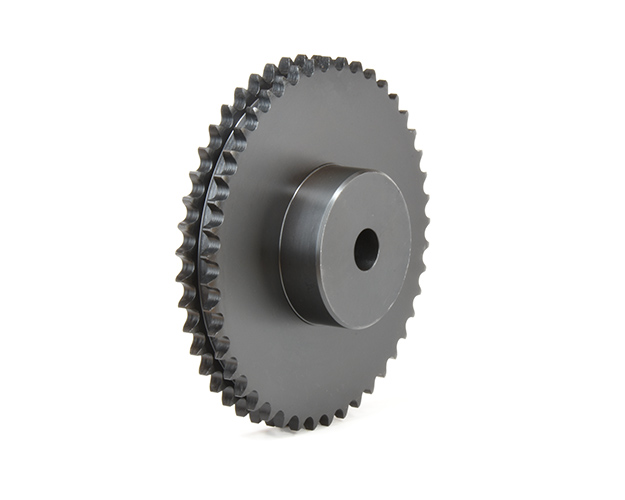

DOUBLE ROW B TYPE SPROCKETS
All PLI sprockets are manufactured using the ISO 9001 quality management system. Double row B type sprockets have a stock bore and usually require some altering before installation. Double row B Type sprockets are to be installed when using PLI Double row roller chains. These sprockets have a hub on one side. The teeth will be hardened on sprockets with 21 or fewer teeth.
Model Specifications
Print
Double Sprockets Chain 80
| Part No. | PLI Sprocket No. | No. of Teeth | Diameters Outside | Diameters Pitch | Bore Stock | Bore Max | Hub Dia. | Hub L.T.B. | Wgt. Lbs. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
80D10 |
PLI Sprocket No.:
D80B10H |
No. of Teeth:
10 |
Diameters Outside:
3.68 |
Diameters Pitch:
3.236 |
Bore Stock:
1 |
Bore Max:
1.5 |
Hub Dia.:
2 9/16* |
Hub L.T.B.:
2.5 |
Wgt. Lbs.:
3.6 |
|||
|
Part No.:
80D11 |
PLI Sprocket No.:
D80B11H |
No. of Teeth:
11 |
Diameters Outside:
4.01 |
Diameters Pitch:
3.55 |
Bore Stock:
1 |
Bore Max:
1.75 |
Hub Dia.:
2.5 |
Hub L.T.B.:
2.5 |
Wgt. Lbs.:
4 |
|||
|
Part No.:
80D12 |
PLI Sprocket No.:
D80B12H |
No. of Teeth:
12 |
Diameters Outside:
4.33 |
Diameters Pitch:
3.864 |
Bore Stock:
1 |
Bore Max:
1.875 |
Hub Dia.:
2.844 |
Hub L.T.B.:
2.5 |
Wgt. Lbs.:
5.1 |
|||
|
Part No.:
80D13 |
PLI Sprocket No.:
D80B13H |
No. of Teeth:
13 |
Diameters Outside:
4.66 |
Diameters Pitch:
4.179 |
Bore Stock:
1 |
Bore Max:
2.25 |
Hub Dia.:
3.156 |
Hub L.T.B.:
2.5 |
Wgt. Lbs.:
6.3 |
|||
|
Part No.:
80D14 |
PLI Sprocket No.:
D80B14H |
No. of Teeth:
14 |
Diameters Outside:
4.98 |
Diameters Pitch:
4.494 |
Bore Stock:
1 |
Bore Max:
2.375 |
Hub Dia.:
3.938 |
Hub L.T.B.:
2.5 |
Wgt. Lbs.:
7.6 |
|||
|
Part No.:
80D15 |
PLI Sprocket No.:
D80B15H |
No. of Teeth:
15 |
Diameters Outside:
5.3 |
Diameters Pitch:
4.81 |
Bore Stock:
1 |
Bore Max:
2.5 |
Hub Dia.:
3.797 |
Hub L.T.B.:
2.5 |
Wgt. Lbs.:
9 |
|||
|
Part No.:
80D16 |
PLI Sprocket No.:
D80B16H |
No. of Teeth:
16 |
Diameters Outside:
5.63 |
Diameters Pitch:
5.126 |
Bore Stock:
1 |
Bore Max:
2.75 |
Hub Dia.:
4 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
11 |
|||
|
Part No.:
80D17 |
PLI Sprocket No.:
D80B17H |
No. of Teeth:
17 |
Diameters Outside:
5.95 |
Diameters Pitch:
5.442 |
Bore Stock:
1 |
Bore Max:
3 |
Hub Dia.:
4.422 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
13.2 |
|||
|
Part No.:
80D18 |
PLI Sprocket No.:
D80B18H |
No. of Teeth:
18 |
Diameters Outside:
6.27 |
Diameters Pitch:
5.759 |
Bore Stock:
1 |
Bore Max:
3.25 |
Hub Dia.:
4.734 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
15 |
|||
|
Part No.:
80D19 |
PLI Sprocket No.:
D80B19H |
No. of Teeth:
19 |
Diameters Outside:
6.59 |
Diameters Pitch:
6.076 |
Bore Stock:
1 |
Bore Max:
3.313 |
Hub Dia.:
5 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
17 |
|||
|
Part No.:
80D20 |
PLI Sprocket No.:
D80B20H |
No. of Teeth:
20 |
Diameters Outside:
6.91 |
Diameters Pitch:
6.392 |
Bore Stock:
1 |
Bore Max:
3.313 |
Hub Dia.:
5 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
18.2 |
|||
|
Part No.:
80D21 |
PLI Sprocket No.:
D80B21H |
No. of Teeth:
21 |
Diameters Outside:
7.24 |
Diameters Pitch:
6.71 |
Bore Stock:
1 |
Bore Max:
3.313 |
Hub Dia.:
5 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
19.6 |
|||
|
Part No.:
80D22 |
PLI Sprocket No.:
D80B22 |
No. of Teeth:
22 |
Diameters Outside:
7.56 |
Diameters Pitch:
7.027 |
Bore Stock:
1 |
Bore Max:
3.313 |
Hub Dia.:
5 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
21 |
|||
|
Part No.:
80D23 |
PLI Sprocket No.:
D80B23 |
No. of Teeth:
23 |
Diameters Outside:
7.88 |
Diameters Pitch:
7.344 |
Bore Stock:
1 |
Bore Max:
3.313 |
Hub Dia.:
5 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
22.8 |
|||
|
Part No.:
80D24 |
PLI Sprocket No.:
D80B24 |
No. of Teeth:
24 |
Diameters Outside:
8.2 |
Diameters Pitch:
7.661 |
Bore Stock:
1 |
Bore Max:
3.5 |
Hub Dia.:
5.25 |
Hub L.T.B.:
2.75 |
Wgt. Lbs.:
25.1 |
|||
|
Part No.:
80D25 |
PLI Sprocket No.:
D80B25 |
No. of Teeth:
25 |
Diameters Outside:
8.52 |
Diameters Pitch:
7.979 |
Bore Stock:
1 |
Bore Max:
3.5 |
Hub Dia.:
5.25 |
Hub L.T.B.:
3 |
Wgt. Lbs.:
28.3 |
|||
|
Part No.:
80D26 |
PLI Sprocket No.:
D80B26 |
No. of Teeth:
26 |
Diameters Outside:
8.84 |
Diameters Pitch:
8.296 |
Bore Stock:
1 |
Bore Max:
3.5 |
Hub Dia.:
5.25 |
Hub L.T.B.:
3 |
Wgt. Lbs.:
29.9 |
|||
|
Part No.:
80D30 |
PLI Sprocket No.:
D80B30 |
No. of Teeth:
30 |
Diameters Outside:
10.11 |
Diameters Pitch:
9.567 |
Bore Stock:
1.25 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3 |
Wgt. Lbs.:
39.5 |
|||
|
Part No.:
80D32 |
PLI Sprocket No.:
D80B32 |
No. of Teeth:
32 |
Diameters Outside:
10.75 |
Diameters Pitch:
10.202 |
Bore Stock:
1.25 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3 |
Wgt. Lbs.:
43.8 |
|||
|
Part No.:
80D35 |
PLI Sprocket No.:
D80B35 |
No. of Teeth:
35 |
Diameters Outside:
11.71 |
Diameters Pitch:
11.156 |
Bore Stock:
1.25 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3 |
Wgt. Lbs.:
49.1 |
|||
|
Part No.:
80D36 |
PLI Sprocket No.:
D80B36 |
No. of Teeth:
36 |
Diameters Outside:
12.03 |
Diameters Pitch:
11.474 |
Bore Stock:
1.25 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3.125 |
Wgt. Lbs.:
54.2 |
|||
|
Part No.:
80D42 |
PLI Sprocket No.:
D80B42 |
No. of Teeth:
42 |
Diameters Outside:
13.94 |
Diameters Pitch:
13.382 |
Bore Stock:
1.25 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3.125 |
Wgt. Lbs.:
71.5 |
|||
|
Part No.:
80D45 |
PLI Sprocket No.:
D80B45 |
No. of Teeth:
45 |
Diameters Outside:
14.9 |
Diameters Pitch:
14.336 |
Bore Stock:
1.25 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3.75 |
Wgt. Lbs.:
73.5 |
|||
|
Part No.:
80D60 |
PLI Sprocket No.:
D80C60 |
No. of Teeth:
60 |
Diameters Outside:
19.68 |
Diameters Pitch:
19.107 |
Bore Stock:
1.5 |
Bore Max:
3.75 |
Hub Dia.:
5.75 |
Hub L.T.B.:
3.75 |
Wgt. Lbs.:
93.3 |
|||
*Has recessed groove in hub for chain clearance. 1" Pitch, Nominal = 0.557", Dimension T for #D80 = 1.710", Maximun bores shown will accommodate standard keyseat & setscrew over Keyseat. Slightly larger bores are possible with no keyseat, shallow keysea
