HC Inserts

HC Type Inserts

Description

FK, A Bearing Units Expert.

Bearing Units provide simple and effective bearing arrangements capable of accommodating moderate initial misalignment from mounting errors, they are easily mounted onto commercial shafting.The reliability,simplicity and ease of assembly of FK Bearing Units has resulted in their popularity for agricultural machinery,mining equipment, textile machinery, fans,woodworking machinery, lifting machine, packaging machinery, fitness equipment, parking equipment and construction machinery as well as process and automation equipment.

Download data sheet

Model Specifications

Print

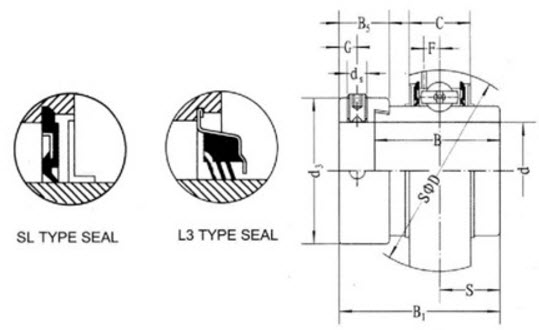

Part No.DescriptionShaft Diameter (Inches)Dimensions D (Inches)Dimensions B1 (Inches)Dimensions B(Inches)Dimensions C (Inches)Dimensions S (Inches)Dimensions ds (Inches)Dimensions G (Inches)Dimensions B5 (Inches)Dimensions d3 (Inches)Dimensions F (Inches)Load Rating DynamicLoad Rating StaticWgt Lbs
Part No. : BHC075Description : HC204-12Shaft Diameter (Inches) : 0.75Dimensions D (Inches) : 1.85Dimensions B1 (Inches) : 1.72Dimensions B(Inches) : 1.347Dimensions C (Inches) : 0.669Dimensions S (Inches) : 0.673Dimensions ds (Inches) : 1/4-28Dimensions G (Inches) : 0.189Dimensions B5 (Inches) : 0.531Dimensions d3 (Inches) : 1.311Dimensions F (Inches) : 0.146Load Rating Dynamic : 2900Load Rating Static : 1500Wgt Lbs : 0.5Add to cart
Part No. : BHC100Description : HC205-16Shaft Diameter (Inches) : 1Dimensions D (Inches) : 2.047Dimensions B1 (Inches) : 1.748Dimensions B(Inches) : 1.374Dimensions C (Inches) : 0.669Dimensions S (Inches) : 0.689Dimensions ds (Inches) : 1/4-28Dimensions G (Inches) : 0.189Dimensions B5 (Inches) : 0.531Dimensions d3 (Inches) : 1.5Dimensions F (Inches) : 0.154Load Rating Dynamic : 3150Load Rating Static : 1800Wgt Lbs : 0.53Add to cart
Part No. : BHC112Description : HC206-18Shaft Diameter (Inches) : 1.125Dimensions D (Inches) : 2.441Dimensions B1 (Inches) : 1.906Dimensions B(Inches) : 1.437Dimensions C (Inches) : 0.748Dimensions S (Inches) : 0.72Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.236Dimensions B5 (Inches) : 0.626Dimensions d3 (Inches) : 1.752Dimensions F (Inches) : 0.197Load Rating Dynamic : 4400Load Rating Static : 2540Wgt Lbs : 0.958Add to cart
Part No. : BHC118Description : HC206-19Shaft Diameter (Inches) : 1.188Dimensions D (Inches) : 2.441Dimensions B1 (Inches) : 1.906Dimensions B(Inches) : 1.437Dimensions C (Inches) : 0.748Dimensions S (Inches) : 0.72Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.236Dimensions B5 (Inches) : 0.626Dimensions d3 (Inches) : 1.752Dimensions F (Inches) : 0.197Load Rating Dynamic : 4400Load Rating Static : 2540Wgt Lbs : 0.93Add to cart
Part No. : BHC125LDescription : HC206-20Shaft Diameter (Inches) : 1.25Dimensions D (Inches) : 2.441Dimensions B1 (Inches) : 1.906Dimensions B(Inches) : 1.437Dimensions C (Inches) : 0.748Dimensions S (Inches) : 0.72Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.236Dimensions B5 (Inches) : 0.626Dimensions d3 (Inches) : 1.752Dimensions F (Inches) : 0.197Load Rating Dynamic : 4400Load Rating Static : 2540Wgt Lbs : 0.92Add to cart
Part No. : BHC125Description : HC207-20Shaft Diameter (Inches) : 1.25Dimensions D (Inches) : 2.835Dimensions B1 (Inches) : 2.012Dimensions B(Inches) : 1.48Dimensions C (Inches) : 0.787Dimensions S (Inches) : 0.74Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.689Dimensions d3 (Inches) : 2.189Dimensions F (Inches) : 0.224Load Rating Dynamic : 5800Load Rating Static : 3450Wgt Lbs : 1.47Add to cart
Part No. : BHC137Description : HC207-22Shaft Diameter (Inches) : 1.375Dimensions D (Inches) : 2.835Dimensions B1 (Inches) : 2.012Dimensions B(Inches) : 1.48Dimensions C (Inches) : 0.787Dimensions S (Inches) : 0.74Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.689Dimensions d3 (Inches) : 2.189Dimensions F (Inches) : 0.224Load Rating Dynamic : 5800Load Rating Static : 3450Wgt Lbs : 1.32Add to cart
Part No. : BHC143Description : HC207-23Shaft Diameter (Inches) : 1.438Dimensions D (Inches) : 2.835Dimensions B1 (Inches) : 2.012Dimensions B(Inches) : 1.48Dimensions C (Inches) : 0.787Dimensions S (Inches) : 0.74Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.689Dimensions d3 (Inches) : 2.189Dimensions F (Inches) : 0.224Load Rating Dynamic : 5800Load Rating Static : 3450Wgt Lbs : 1.32Add to cart
Part No. : BHC150Description : HC208-24Shaft Diameter (Inches) : 1.5Dimensions D (Inches) : 3.15Dimensions B1 (Inches) : 2.217Dimensions B(Inches) : 1.685Dimensions C (Inches) : 0.827Dimensions S (Inches) : 0.843Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.72Dimensions d3 (Inches) : 2.374Dimensions F (Inches) : 0.244Load Rating Dynamic : 6630Load Rating Static : 4070Wgt Lbs : 1.85Add to cart
Part No. : BHC175Description : HC209-28Shaft Diameter (Inches) : 1.75Dimensions D (Inches) : 3.347Dimensions B1 (Inches) : 2.217Dimensions B(Inches) : 1.685Dimensions C (Inches) : 0.866Dimensions S (Inches) : 0.843Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.72Dimensions d3 (Inches) : 2.5Dimensions F (Inches) : 0.252Load Rating Dynamic : 7100Load Rating Static : 4630Wgt Lbs : 1.91Add to cart
Part No. : BHC193Description : HC210-31Shaft Diameter (Inches) : 1.938Dimensions D (Inches) : 3.543Dimensions B1 (Inches) : 2.469Dimensions B(Inches) : 1.937Dimensions C (Inches) : 0.945Dimensions S (Inches) : 0.969Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.72Dimensions d3 (Inches) : 2.752Dimensions F (Inches) : 0.256Load Rating Dynamic : 7870Load Rating Static : 5210Wgt Lbs : 2.24Add to cart
Part No. : BHC200LDescription : HC210-32Shaft Diameter (Inches) : 2Dimensions D (Inches) : 3.543Dimensions B1 (Inches) : 2.469Dimensions B(Inches) : 1.937Dimensions C (Inches) : 0.945Dimensions S (Inches) : 0.969Dimensions ds (Inches) : 5/16-24Dimensions G (Inches) : 0.268Dimensions B5 (Inches) : 0.72Dimensions d3 (Inches) : 2.752Dimensions F (Inches) : 0.256Load Rating Dynamic : 7870Load Rating Static : 5210Wgt Lbs : 2.11Add to cart
Part No. : BHC200Description : HC211-32Shaft Diameter (Inches) : 2Dimensions D (Inches) : 3.937Dimensions B1 (Inches) : 2.811Dimensions B(Inches) : 2.185Dimensions C (Inches) : 0.984Dimensions S (Inches) : 1.094Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.315Dimensions B5 (Inches) : 0.815Dimensions d3 (Inches) : 3Dimensions F (Inches) : 0.276Load Rating Dynamic : 9800Load Rating Static : 6570Wgt Lbs : 3.34Add to cart
Part No. : BHC218Description : HC211-35Shaft Diameter (Inches) : 2.187Dimensions D (Inches) : 3.937Dimensions B1 (Inches) : 2.811Dimensions B(Inches) : 2.185Dimensions C (Inches) : 0.984Dimensions S (Inches) : 1.094Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.315Dimensions B5 (Inches) : 0.815Dimensions d3 (Inches) : 3Dimensions F (Inches) : 0.276Load Rating Dynamic : 9800Load Rating Static : 6570Wgt Lbs : 2.9Add to cart
Part No. : BHC225Description : HC212-36Shaft Diameter (Inches) : 2.25Dimensions D (Inches) : 4.331Dimensions B1 (Inches) : 3.063Dimensions B(Inches) : 2.437Dimensions C (Inches) : 1.063Dimensions S (Inches) : 1.22Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.315Dimensions B5 (Inches) : 0.878Dimensions d3 (Inches) : 3.315Dimensions F (Inches) : 0.299Load Rating Dynamic : 10720Load Rating Static : 7400Wgt Lbs : 4.49Add to cart
Part No. : BHC243Description : HC212-39Shaft Diameter (Inches) : 2.438Dimensions D (Inches) : 4.331Dimensions B1 (Inches) : 3.063Dimensions B(Inches) : 2.437Dimensions C (Inches) : 1.063Dimensions S (Inches) : 1.22Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.315Dimensions B5 (Inches) : 0.878Dimensions d3 (Inches) : 3.315Dimensions F (Inches) : 0.299Load Rating Dynamic : 10720Load Rating Static : 7400Wgt Lbs : 3.89Add to cart
Part No. : BHC250Description : HC213-40Shaft Diameter (Inches) : 2.5Dimensions D (Inches) : 4.724Dimensions B1 (Inches) : 3.374Dimensions B(Inches) : 2.701Dimensions C (Inches) : 1.102Dimensions S (Inches) : 1.343Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.335Dimensions B5 (Inches) : 0.925Dimensions d3 (Inches) : 3.386Dimensions F (Inches) : 0.335Load Rating Dynamic : 13000Load Rating Static : 9000Wgt Lbs : 5.52Add to cart
Part No. : BHC293Description : HC215-47Shaft Diameter (Inches) : 2.938Dimensions D (Inches) : 5.118Dimensions B1 (Inches) : 3.626Dimensions B(Inches) : 2.953Dimensions C (Inches) : 1.181Dimensions S (Inches) : 1.469Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.335Dimensions B5 (Inches) : 0.925Dimensions d3 (Inches) : 4.016Dimensions F (Inches) : 0.362Load Rating Dynamic : 14830Load Rating Static : 11130Wgt Lbs : 6.36Add to cart
Part No. : BHC300Description : HC215-48Shaft Diameter (Inches) : 3Dimensions D (Inches) : 5.118Dimensions B1 (Inches) : 3.626Dimensions B(Inches) : 2.953Dimensions C (Inches) : 1.181Dimensions S (Inches) : 1.469Dimensions ds (Inches) : 3/8-24Dimensions G (Inches) : 0.335Dimensions B5 (Inches) : 0.925Dimensions d3 (Inches) : 4.016Dimensions F (Inches) : 0.362Load Rating Dynamic : 14830Load Rating Static : 11130Wgt Lbs : 6.03Add to cart
