UC Inserts - Stainless Steel

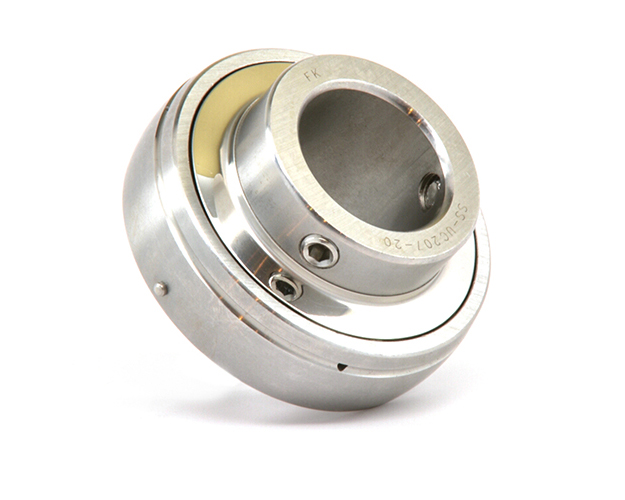

SSUC Type Stainless Steel Inserts

Description

FK, A Bearing Units Expert.

Bearing Units provide simple and effective bearing arrangements capable of accommodating moderate initial misalignment from mounting errors, they are easily mounted onto commercial shafting.The reliability,simplicity and ease of assembly of FK Bearing Units has resulted in their popularity for agricultural machinery,mining equipment, textile machinery, fans,woodworking machinery, lifting machine, packaging machinery, fitness equipment, parking equipment and construction machinery as well as process and automation equipment.

Download data sheet

Model Specifications

Print
Part No.DescriptionShaft Diameter (Inches)Dimensions D (Inches)Dimensions B (Inches)Dimensions C (Inches)Dimensions S (Inches)Dimensions S1 (Inches)Dimensions G (Inches)Dimensions ds (Inches)Dimensions F (Inches)Load Rating StaticLoad Rating DynamicWgt Lbs
Part No. : BSUC075Description : SSUC204-12Shaft Diameter (Inches) : 0.75Dimensions D (Inches) : 1.85Dimensions B (Inches) : 1.221Dimensions C (Inches) : 0.669Dimensions S (Inches) : 0.5Dimensions S1 (Inches) : 0.721Dimensions G (Inches) : 0.177Dimensions ds (Inches) : 1/4-28Dimensions F (Inches) : 0.146Load Rating Static : 2900Load Rating Dynamic : 1500Wgt Lbs : 0.35Add to cart
Part No. : BSUC100Description : SSUC205-16Shaft Diameter (Inches) : 1Dimensions D (Inches) : 2.047Dimensions B (Inches) : 1.343Dimensions C (Inches) : 0.669Dimensions S (Inches) : 0.563Dimensions S1 (Inches) : 0.776Dimensions G (Inches) : 0.197Dimensions ds (Inches) : 1/4-28Dimensions F (Inches) : 0.154Load Rating Static : 3150Load Rating Dynamic : 1800Wgt Lbs : 0.42Add to cart
Part No. : BSUC125LDescription : SSUC206-20Shaft Diameter (Inches) : 1.25Dimensions D (Inches) : 2.441Dimensions B (Inches) : 1.5Dimensions C (Inches) : 0.748Dimensions S (Inches) : 0.626Dimensions S1 (Inches) : 0.874Dimensions G (Inches) : 0.197Dimensions ds (Inches) : 1/4-28Dimensions F (Inches) : 0.197Load Rating Static : 4400Load Rating Dynamic : 2540Wgt Lbs : 0.66Add to cart
Part No. : BSUC125Description : SSUC207-20Shaft Diameter (Inches) : 1.25Dimensions D (Inches) : 2.835Dimensions B (Inches) : 1.689Dimensions C (Inches) : 0.787Dimensions S (Inches) : 0.689Dimensions S1 (Inches) : 1Dimensions G (Inches) : 0.276Dimensions ds (Inches) : 5/16-24Dimensions F (Inches) : 0.224Load Rating Static : 5800Load Rating Dynamic : 3450Wgt Lbs : 1.15Add to cart
Part No. : BSUC150Description : SSUC208-24Shaft Diameter (Inches) : 1.5Dimensions D (Inches) : 3.15Dimensions B (Inches) : 1.937Dimensions C (Inches) : 0.827Dimensions S (Inches) : 0.748Dimensions S1 (Inches) : 1.189Dimensions G (Inches) : 0.315Dimensions ds (Inches) : 5/16-24Dimensions F (Inches) : 0.244Load Rating Static : 6630Load Rating Dynamic : 4070Wgt Lbs : 1.5Add to cart
Part No. : BSUCM075Description : SSUC204 20mmShaft Diameter (Inches) : 0.75Dimensions D (Inches) : 1.85Dimensions B (Inches) : 1.221Dimensions C (Inches) : 0.669Dimensions S (Inches) : 0.5Dimensions S1 (Inches) : 0.721Dimensions G (Inches) : 0.177Dimensions ds (Inches) : 1/4-28Dimensions F (Inches) : 0.146Load Rating Static : 2900Load Rating Dynamic : 1500Wgt Lbs : 0.35Add to cart
Part No. : BSUCM100Description : SSUC205 25mmShaft Diameter (Inches) : 1Dimensions D (Inches) : 2.047Dimensions B (Inches) : 1.343Dimensions C (Inches) : 0.669Dimensions S (Inches) : 0.563Dimensions S1 (Inches) : 0.776Dimensions G (Inches) : 0.197Dimensions ds (Inches) : 1/4-28Dimensions F (Inches) : 0.154Load Rating Static : 3150Load Rating Dynamic : 1800Wgt Lbs : 0.42Add to cart
Part No. : BSUCM125LDescription : SSUC206 30mmShaft Diameter (Inches) : 1.25Dimensions D (Inches) : 2.441Dimensions B (Inches) : 1.5Dimensions C (Inches) : 0.748Dimensions S (Inches) : 0.626Dimensions S1 (Inches) : 0.874Dimensions G (Inches) : 0.197Dimensions ds (Inches) : 1/4-28Dimensions F (Inches) : 0.197Load Rating Static : 4400Load Rating Dynamic : 2540Wgt Lbs : 0.66Add to cart
