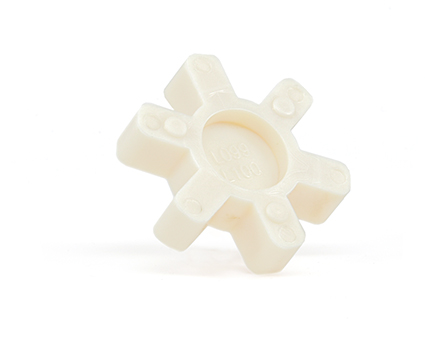

PLI Jaw Coupling Hytrel Inserts

Jaw Coupling Hytrel Inserts

Description

Power-Link Jaw Couplings are designed to meet high-quality standards while remaining very affordable. PLI offers one Jaw-type elastomeric couplings the straight L-Jaw coupling available with three insert materials perfectly interchangeable.

Download data sheet

Model Specifications

Print
Part No.Outside Diameter DCenter Diameter dTotal Width WTooth Width TH
Part No. : LI050HYOutside Diameter D : 1.07Center Diameter d : -Total Width W : 0.42Tooth Width T : 0.27H : -Add to cart
Part No. : LI070HYOutside Diameter D : 1.38Center Diameter d : -Total Width W : 0.42Tooth Width T : 0.27H : -Add to cart
Part No. : LI075HYOutside Diameter D : 1.75Center Diameter d : -Total Width W : 0.44Tooth Width T : 0.27H : -Add to cart
Part No. : LI090095HYOutside Diameter D : 2.12Center Diameter d : 0.88Total Width W : 0.44Tooth Width T : 0.36H : 0.18Add to cart
Part No. : LI099100HYOutside Diameter D : 2.54Center Diameter d : 1.03Total Width W : 0.61Tooth Width T : 0.43H : 0.25Add to cart
Part No. : LI110HYOutside Diameter D : 3.31Center Diameter d : 1.19Total Width W : 0.75Tooth Width T : 0.45H : 0.18Add to cart
Part No. : LI150HYOutside Diameter D : 3.75Center Diameter d : 1.25Total Width W : 0.88Tooth Width T : 0.59H : 0.21Add to cart
Part No. : LI190HYOutside Diameter D : 4.5Center Diameter d : 1.38Total Width W : 0.88Tooth Width T : 0.6H : 0.18Add to cart
Part No. : LI225HYOutside Diameter D : 4.98Center Diameter d : 1.75Total Width W : 0.88Tooth Width T : 0.73H : 0.18Add to cart
