Model Specifications
Print

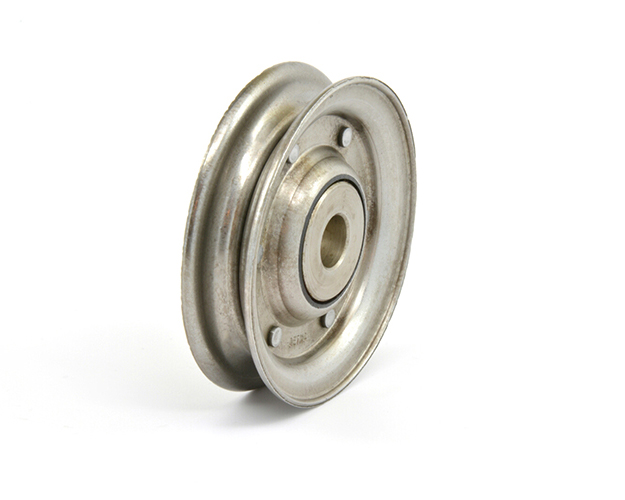

'V' Belt Idlers
| Pulley No. | A | B | C | D | E** | F | G | H | Wgt. In Lbs. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Pulley No.:
AG2321 |
A:
.643/.649 |
B:
1.19 |
C:
2.25 |
D:
3.25 |
E**:
A |
F:
0.88 |
G:
1.44 |
H:
0.75 |
Wgt. In Lbs.:
0.75 |
|||
|
Pulley No.:
AG2321-A |
A:
.516/.522 |
B:
1.19 |
C:
2.25 |
D:
3.25 |
E**:
Section |
F:
0.88 |
G:
1.44 |
H:
0.75 |
Wgt. In Lbs.:
0.78 |
|||
|
Pulley No.:
AG2421 |
A:
.643/.649 |
B:
0.88 |
C:
3.22 |
D:
4.41 |
E**:
B |
F:
0.97 |
G:
1.44 |
H:
0.93 |
Wgt. In Lbs.:
0.98 |
|||
|
Pulley No.:
AG2421-A |
A:
.516/.522 |
B:
0.88 |
C:
3.22 |
D:
4.41 |
E**:
Section |
F:
0.97 |
G:
1.44 |
H:
0.93 |
Wgt. In Lbs.:
1.01 |
|||
|
Pulley No.:
AG2621 |
A:
.643/.649 |
B:
0.88 |
C:
3.81 |
D:
5.75 |
E**:
A,B,C |
F:
1.16 |
G:
1.9 |
H:
0.93 |
Wgt. In Lbs.:
1.52 |
|||
|
Pulley No.:
AG2621-A |
A:
.516/.522 |
B:
0.88 |
C:
3.81 |
D:
5.75 |
E**:
Section |
F:
1.16 |
G:
1.9 |
H:
0.93 |
Wgt. In Lbs.:
1.55 |
|||
|
Pulley No.:
AG2721 |
A:
.643/.649 |
B:
0.88 |
C:
5.22 |
D:
7 |
E**:
B,C |
F:
1.16 |
G:
1.9 |
H:
0.93 |
Wgt. In Lbs.:
2 |
|||
|
Pulley No.:
AG2721-A |
A:
.516/.522 |
B:
0.88 |
C:
5.22 |
D:
7 |
E**:
Section |
F:
1.16 |
G:
1.9 |
H:
0.93 |
Wgt. In Lbs.:
2.03 |
|||
