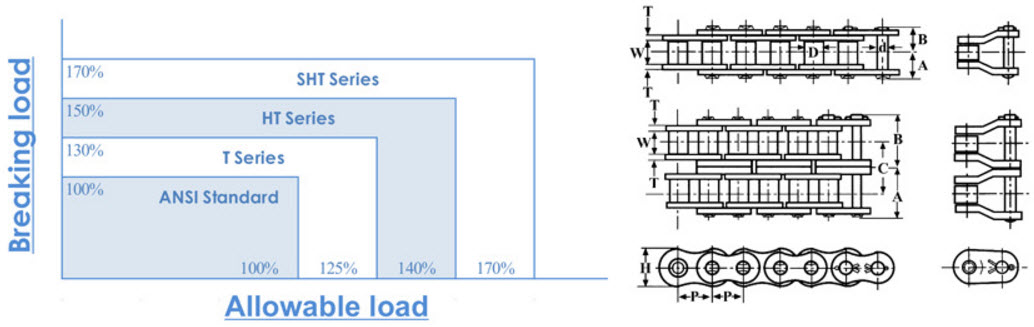

ECC - Heavy Duty Roller Chain
| Part No. | ECC Chain No. | Pitch P | Roller Dia. D | Roller Width W | Pin Dia. d | Plate Height H | Plate Thickness T | Overall Width A | Overall Width B | Average Ultimate Strength | Average Weight Per Foot | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
ECC050H |
ECC Chain No.:
RC50H |
Pitch P:
0.625 |
Roller Dia. D:
0.4 |
Roller Width W:
0.375 |
Pin Dia. d:
0.2 |
Plate Height H:
0.59 |
Plate Thickness T:
0.094 |
Overall Width A:
0.43 |
Overall Width B:
0.508 |
Average Ultimate Strength:
7480 |
Average Weight Per Foot:
0.87 |
|||
|
Part No.:
ECC060H |
ECC Chain No.:
RC60H |
Pitch P:
0.75 |
Roller Dia. D:
0.469 |
Roller Width W:
0.5 |
Pin Dia. d:
0.234 |
Plate Height H:
0.689 |
Plate Thickness T:
0.125 |
Overall Width A:
0.555 |
Overall Width B:
0.654 |
Average Ultimate Strength:
11660 |
Average Weight Per Foot:
1.21 |
|||
|
Part No.:
ECC080H |
ECC Chain No.:
RC80H |
Pitch P:
1 |
Roller Dia. D:
0.625 |
Roller Width W:
0.625 |
Pin Dia. d:
0.312 |
Plate Height H:
0.945 |
Plate Thickness T:
0.157 |
Overall Width A:
0.705 |
Overall Width B:
0.819 |
Average Ultimate Strength:
20240 |
Average Weight Per Foot:
1.89 |
|||
|
Part No.:
ECC100H |
ECC Chain No.:
RC100H |
Pitch P:
1.25 |
Roller Dia. D:
0.75 |
Roller Width W:
0.75 |
Pin Dia. d:
0.375 |
Plate Height H:
1.138 |
Plate Thickness T:
0.185 |
Overall Width A:
0.862 |
Overall Width B:
0.988 |
Average Ultimate Strength:
29700 |
Average Weight Per Foot:
2.78 |
|||
|
Part No.:
ECC120H |
ECC Chain No.:
RC120H |
Pitch P:
1.5 |
Roller Dia. D:
0.875 |
Roller Width W:
1 |
Pin Dia. d:
0.437 |
Plate Height H:
1.378 |
Plate Thickness T:
0.22 |
Overall Width A:
1.057 |
Overall Width B:
1.189 |
Average Ultimate Strength:
37180 |
Average Weight Per Foot:
3.92 |
|||
|
Part No.:
ECC140H |
ECC Chain No.:
RC140H |
Pitch P:
1.75 |
Roller Dia. D:
1 |
Roller Width W:
1 |
Pin Dia. d:
0.5 |
Plate Height H:
1.61 |
Plate Thickness T:
0.25 |
Overall Width A:
1.122 |
Overall Width B:
1.304 |
Average Ultimate Strength:
54200 |
Average Weight Per Foot:
5.65 |
|||
|
Part No.:
ECC160H |
ECC Chain No.:
RC160H |
Pitch P:
2 |
Roller Dia. D:
1.125 |
Roller Width W:
1.25 |
Pin Dia. d:
0.562 |
Plate Height H:
1.839 |
Plate Thickness T:
0.281 |
Overall Width A:
1.333 |
Overall Width B:
1.534 |
Average Ultimate Strength:
68700 |
Average Weight Per Foot:
7.3 |
|||
Dimensions in inches & pounds.
