Size 35 Stainless Steel Sprockets

Stainless Steel 35 Roller Chain Sprockets

Description

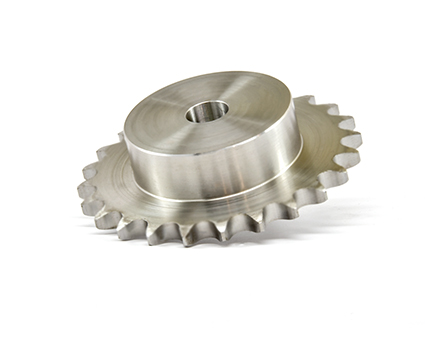

All PLI sprockets are manufactured using the ISO 9001 quality management system. Stainless steel B type sprockets have a stock bore and usually require some altering before installation. They are manufactured out of 304 Stainless steel. Stainless steel B Type sprockets have a hub on one side. The teeth are not hardened.

Download data sheet

Model Specifications

Print

Size 35 Stainless Steel Sprockets

Part No.Part DescriptionNo. of TeethOutside DiameterPitch DiameterStock BoreMax BoreHub Dia.L.T.BWgt. Lbs.
Part No.:
35SS10
Part Description:
35B10SS
No. of Teeth:
10
Outside Diameter:
1.380"
Pitch Diameter:
1.214"
Stock Bore:
3/8"
Max Bore:
9/16"
Hub Dia.:
31/31*
L.T.B:
3/4"
Wgt. Lbs.:
0.15
Part No.:
35SS11
Part Description:
35B11SS
No. of Teeth:
11
Outside Diameter:
1.500"
Pitch Diameter:
1.331"
Stock Bore:
3/8"
Max Bore:
9/16"
Hub Dia.:
1 1/16*
L.T.B:
3/4"
Wgt. Lbs.:
0.2
Part No.:
35SS12
Part Description:
35B12SS
No. of Teeth:
12
Outside Diameter:
1.630"
Pitch Diameter:
1.449"
Stock Bore:
1/2"
Max Bore:
5/8"
Hub Dia.:
1 7/32*
L.T.B:
3/4"
Wgt. Lbs.:
0.22
Part No.:
35SS13
Part Description:
35B13SS
No. of Teeth:
13
Outside Diameter:
1.750"
Pitch Diameter:
1.567"
Stock Bore:
1/2"
Max Bore:
3/4"
Hub Dia.:
1 1/4*
L.T.B:
3/4"
Wgt. Lbs.:
0.25
Part No.:
35SS14
Part Description:
35B14SS
No. of Teeth:
14
Outside Diameter:
1.870"
Pitch Diameter:
1.685"
Stock Bore:
1/2"
Max Bore:
7/8"
Hub Dia.:
1 1/4"
L.T.B:
3/4"
Wgt. Lbs.:
0.26
Part No.:
35SS15
Part Description:
35B15SS
No. of Teeth:
15
Outside Diameter:
1.990"
Pitch Diameter:
1.804"
Stock Bore:
1/2"
Max Bore:
7/8"
Hub Dia.:
1 11/32"
L.T.B:
3/4"
Wgt. Lbs.:
0.3
Part No.:
35SS16
Part Description:
35B16SS
No. of Teeth:
16
Outside Diameter:
2.110"
Pitch Diameter:
1.922"
Stock Bore:
1/2"
Max Bore:
15/16"
Hub Dia.:
1 15/32"
L.T.B:
3/4"
Wgt. Lbs.:
0.4
Part No.:
35SS17
Part Description:
35B17SS
No. of Teeth:
17
Outside Diameter:
2.230"
Pitch Diameter:
2.041"
Stock Bore:
1/2"
Max Bore:
1 1/16"
Hub Dia.:
1 19/32"
L.T.B:
3/4"
Wgt. Lbs.:
0.43
Part No.:
35SS18
Part Description:
35B18SS
No. of Teeth:
18
Outside Diameter:
2.350"
Pitch Diameter:
2.159"
Stock Bore:
1/2"
Max Bore:
1 3/16"
Hub Dia.:
1 23/32"
L.T.B:
3/4"
Wgt. Lbs.:
0.5
Part No.:
35SS19
Part Description:
35B19SS
No. of Teeth:
19
Outside Diameter:
2.470"
Pitch Diameter:
2.278"
Stock Bore:
1/2"
Max Bore:
1 1/4"
Hub Dia.:
1 27/32"
L.T.B:
3/4"
Wgt. Lbs.:
0.56
Part No.:
35SS20
Part Description:
35B20SS
No. of Teeth:
20
Outside Diameter:
2.590"
Pitch Diameter:
2.397"
Stock Bore:
1/2"
Max Bore:
1 5/16"
Hub Dia.:
1 15/16"
L.T.B:
3/4"
Wgt. Lbs.:
0.68
Part No.:
35SS21
Part Description:
35B21SS
No. of Teeth:
21
Outside Diameter:
2.710"
Pitch Diameter:
2.516"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.8
Part No.:
35SS22
Part Description:
35B22SS
No. of Teeth:
22
Outside Diameter:
2.830"
Pitch Diameter:
2.635"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.82
Part No.:
35SS23
Part Description:
35B23SS
No. of Teeth:
23
Outside Diameter:
2.950"
Pitch Diameter:
2.754"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.87
Part No.:
35SS24
Part Description:
35B24SS
No. of Teeth:
24
Outside Diameter:
3.070"
Pitch Diameter:
2.873"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.89
Part No.:
35SS25
Part Description:
35B25SS
No. of Teeth:
25
Outside Diameter:
3.190"
Pitch Diameter:
2.992"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.91
Part No.:
35SS26
Part Description:
35B26SS
No. of Teeth:
26
Outside Diameter:
3.310"
Pitch Diameter:
3.111"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.93
Part No.:
35SS27
Part Description:
35B27SS
No. of Teeth:
27
Outside Diameter:
3.430"
Pitch Diameter:
3.230"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
0.96
Part No.:
35SS28
Part Description:
35B28SS
No. of Teeth:
28
Outside Diameter:
3.550"
Pitch Diameter:
3.349"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
1
Part No.:
35SS29
Part Description:
35B29SS
No. of Teeth:
29
Outside Diameter:
3.670"
Pitch Diameter:
3.468"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
1.03
Part No.:
35SS30
Part Description:
35B30SS
No. of Teeth:
30
Outside Diameter:
3.790"
Pitch Diameter:
3.588"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
1.06
Part No.:
35SS31
Part Description:
35B31SS
No. of Teeth:
31
Outside Diameter:
4.030"
Pitch Diameter:
3.826"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
1.16
Part No.:
35SS32
Part Description:
35B32SS
No. of Teeth:
32
Outside Diameter:
4.150"
Pitch Diameter:
3.945"
Stock Bore:
1/2"
Max Bore:
1 3/8"
Hub Dia.:
2"
L.T.B:
7/8"
Wgt. Lbs.:
1.26
Part No.:
35SS33
Part Description:
35B33SS
No. of Teeth:
33
Outside Diameter:
4.270"
Pitch Diameter:
4.064"
Stock Bore:
1/2"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
7/8"
Wgt. Lbs.:
1.36
Part No.:
35SS34
Part Description:
35B34SS
No. of Teeth:
34
Outside Diameter:
4.390"
Pitch Diameter:
4.183"
Stock Bore:
1/2"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
7/8"
Wgt. Lbs.:
1.46
Part No.:
35SS35
Part Description:
35B35SS
No. of Teeth:
35
Outside Diameter:
4.510"
Pitch Diameter:
4.303"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.56
Part No.:
35SS36
Part Description:
35B36SS
No. of Teeth:
36
Outside Diameter:
4.630"
Pitch Diameter:
4.422"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.62
Part No.:
35SS37
Part Description:
35B37SS
No. of Teeth:
37
Outside Diameter:
4.750"
Pitch Diameter:
4.541"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.64
Part No.:
35SS38
Part Description:
35B38SS
No. of Teeth:
38
Outside Diameter:
4.870"
Pitch Diameter:
4.660"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.65
Part No.:
35SS39
Part Description:
35B39SS
No. of Teeth:
39
Outside Diameter:
4.990"
Pitch Diameter:
4.780"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.67
Part No.:
35SS40
Part Description:
35B40SS
No. of Teeth:
40
Outside Diameter:
5.110"
Pitch Diameter:
4.899"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.7
Part No.:
35SS42
Part Description:
35B42SS
No. of Teeth:
42
Outside Diameter:
5.230"
Pitch Diameter:
5.018"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
1.86
Part No.:
35SS45
Part Description:
35B45SS
No. of Teeth:
45
Outside Diameter:
5.070"
Pitch Diameter:
4.889"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
2.18
Part No.:
35SS48
Part Description:
35B48SS
No. of Teeth:
48
Outside Diameter:
5.470"
Pitch Diameter:
5.257"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
2.27
Part No.:
35SS50
Part Description:
35B50SS
No. of Teeth:
50
Outside Diameter:
5.590"
Pitch Diameter:
5.376"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
2.36
Part No.:
35SS52
Part Description:
35B52SS
No. of Teeth:
52
Outside Diameter:
5.710"
Pitch Diameter:
5.495"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
2.45
Part No.:
35SS54
Part Description:
35B54SS
No. of Teeth:
54
Outside Diameter:
5.950"
Pitch Diameter:
5.734"
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
2.52
Part No.:
35SS56
Part Description:
35B56SS
No. of Teeth:
56
Outside Diameter:
6.660"
Pitch Diameter:
6.449
Stock Bore:
5/8"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
2.65
Part No.:
35SS60
Part Description:
35B60SS
No. of Teeth:
60
Outside Diameter:
7.380"
Pitch Diameter:
7.165
Stock Bore:
3/4"
Max Bore:
1 1/2"
Hub Dia.:
2 1/4"
L.T.B:
1"
Wgt. Lbs.:
3

*Has recessed groove in hub for chain clearance. 3/8" Pitch, Nominal = 0.168", Maximun bores shown will accommodate standard keyseat & setscrew over Keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to
