AX Type V Belts

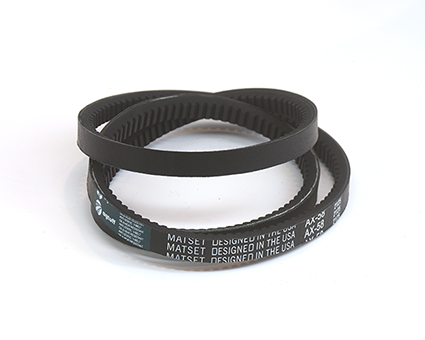

AX Cogged Type V Belts

Description

Agtuff AX cogged V-belts are high-performance, 1/2-inch top-width notched belts designed for increased flexibility, better grip, and superior heat dissipation compared to standard A-series beltsresistance to high heat.

Model Specifications

Print

AX Type V Belts

Part No.Inside Length in.Outside Length in.Top Width "a"Height "b"Angle "e"
Part No.:
PLIAX25
Inside Length in.:
25
Outside Length in.:
27
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX26
Inside Length in.:
26
Outside Length in.:
28
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX27
Inside Length in.:
27
Outside Length in.:
29
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX28
Inside Length in.:
28
Outside Length in.:
30
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX29
Inside Length in.:
29
Outside Length in.:
31
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX30
Inside Length in.:
30
Outside Length in.:
32
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX31
Inside Length in.:
31
Outside Length in.:
33
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX32
Inside Length in.:
32
Outside Length in.:
34
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX33
Inside Length in.:
33
Outside Length in.:
35
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX34
Inside Length in.:
34
Outside Length in.:
36
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX35
Inside Length in.:
35
Outside Length in.:
37
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX36
Inside Length in.:
36
Outside Length in.:
38
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX37
Inside Length in.:
37
Outside Length in.:
39
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX38
Inside Length in.:
38
Outside Length in.:
40
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX39
Inside Length in.:
39
Outside Length in.:
41
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX40
Inside Length in.:
40
Outside Length in.:
42
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX41
Inside Length in.:
41
Outside Length in.:
43
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX42
Inside Length in.:
42
Outside Length in.:
44
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX43
Inside Length in.:
43
Outside Length in.:
45
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX44
Inside Length in.:
44
Outside Length in.:
46
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX45
Inside Length in.:
45
Outside Length in.:
47
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX46
Inside Length in.:
46
Outside Length in.:
48
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX47
Inside Length in.:
47
Outside Length in.:
49
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX48
Inside Length in.:
48
Outside Length in.:
50
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX49
Inside Length in.:
49
Outside Length in.:
51
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX50
Inside Length in.:
50
Outside Length in.:
52
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX51
Inside Length in.:
51
Outside Length in.:
53
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX52
Inside Length in.:
52
Outside Length in.:
54
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX53
Inside Length in.:
53
Outside Length in.:
55
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX54
Inside Length in.:
54
Outside Length in.:
56
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX55
Inside Length in.:
55
Outside Length in.:
57
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX56
Inside Length in.:
56
Outside Length in.:
58
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX57
Inside Length in.:
57
Outside Length in.:
59
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX58
Inside Length in.:
58
Outside Length in.:
60
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX59
Inside Length in.:
59
Outside Length in.:
61
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX60
Inside Length in.:
60
Outside Length in.:
62
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX61
Inside Length in.:
61
Outside Length in.:
63
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX62
Inside Length in.:
62
Outside Length in.:
64
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX63
Inside Length in.:
63
Outside Length in.:
65
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX64
Inside Length in.:
64
Outside Length in.:
66
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX65
Inside Length in.:
65
Outside Length in.:
67
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX66
Inside Length in.:
66
Outside Length in.:
68
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX67
Inside Length in.:
67
Outside Length in.:
69
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX68
Inside Length in.:
68
Outside Length in.:
70
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX69
Inside Length in.:
69
Outside Length in.:
71
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX70
Inside Length in.:
70
Outside Length in.:
72
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX71
Inside Length in.:
71
Outside Length in.:
73
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX72
Inside Length in.:
72
Outside Length in.:
74
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX73
Inside Length in.:
73
Outside Length in.:
75
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX74
Inside Length in.:
74
Outside Length in.:
76
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX75
Inside Length in.:
75
Outside Length in.:
77
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX76
Inside Length in.:
76
Outside Length in.:
78
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX77
Inside Length in.:
77
Outside Length in.:
79
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX78
Inside Length in.:
78
Outside Length in.:
80
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX79
Inside Length in.:
79
Outside Length in.:
81
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX80
Inside Length in.:
80
Outside Length in.:
82
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX81
Inside Length in.:
81
Outside Length in.:
83
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX82
Inside Length in.:
82
Outside Length in.:
84
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX83
Inside Length in.:
83
Outside Length in.:
85
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX84
Inside Length in.:
84
Outside Length in.:
86
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
Part No.:
PLIAX85
Inside Length in.:
85
Outside Length in.:
87
Top Width "a":
1/2"
Height "b":
5/16"
Angle "e":
40°
