Stock Bore Type B Sprockets 410 Chain

410 Roller Chain Sprockets

Description

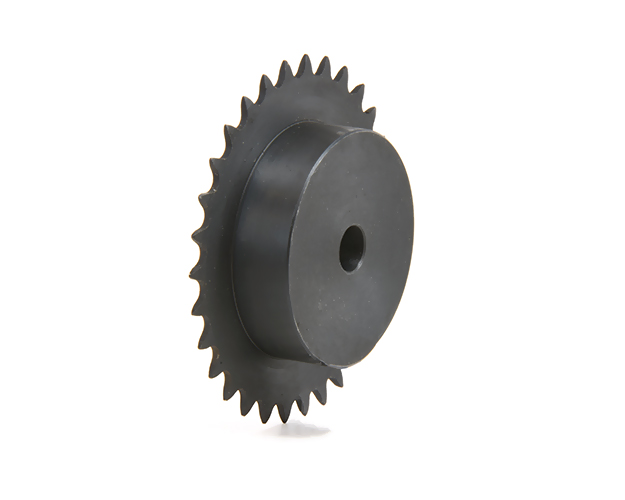

B TYPE STOCK BORE

All PLI sprockets are manufactured using the ISO 9001 quality management system. B type sprockets have a stock bore and usually require some altering before installation. B Type sprockets have a hub on one side. The teeth are not hardened.

Model Specifications

Print

Stock Bore Type B Sprockets 410 Chain

Part No.:
410B14
PLI Sprocket No.:
410B14
No. of Teeth:
14
Diameters Outside:
2.49
Diameters Pitch:
2.247
Bore Stock:
0.5
Bore Max:
1.125
Hub Dia.:
1.688
Hub L.T.B.:
0.875
Wgt. Lbs.:
0.59
Part No.:
410B20
PLI Sprocket No.:
410B20
No. of Teeth:
20
Diameters Outside:
3.46
Diameters Pitch:
3.196
Bore Stock:
0.625
Bore Max:
1.875
Hub Dia.:
2.625
Hub L.T.B.:
1
Wgt. Lbs.:
1.56
Part No.:
410B30
PLI Sprocket No.:
410B30
No. of Teeth:
30
Diameters Outside:
5.06
Diameters Pitch:
4.873
Bore Stock:
0.625
Bore Max:
2.25
Hub Dia.:
3.25
Hub L.T.B.:
1
Wgt. Lbs.:
2.98
Part No.:
410B32
PLI Sprocket No.:
410B32
No. of Teeth:
32
Diameters Outside:
5.38
Diameters Pitch:
5.101
Bore Stock:
0.625
Bore Max:
2.25
Hub Dia.:
3.25
Hub L.T.B.:
1
Wgt. Lbs.:
3.16

1/2" Pitch, Nominal = 0.108"
