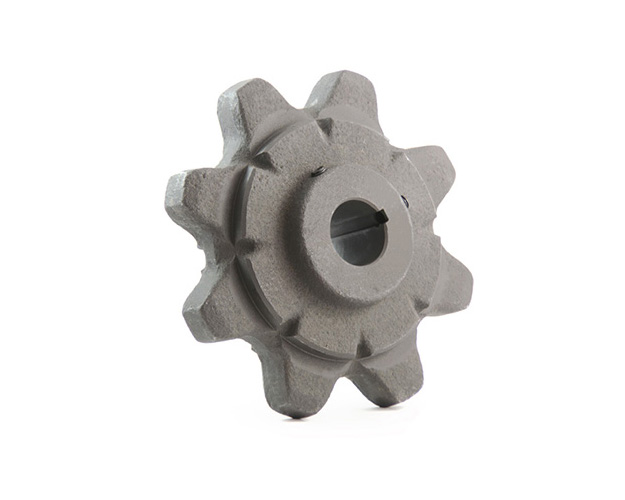

Cast Spreader Conveyor Sprockets 667 & 88 Chain Saver

Chain Saver 667 Conveyor Chain Sprockets

Description

Download data sheet

Model Specifications

Print

Cast Spreader Conveyor Sprockets 667 & 88 Chain Saver

Part No.:
C67C08H
PLI Sprocket No.:
667C08
Bore:
1 1/4 KW + 2SS
No. of Teeth:
8
Pitch Diameter:
5.88
Nominal:
0.9
Hub Dia.:
2.5
Hub L.T.B.:
3
Wgt. Lbs.:
11
Part No.:
C67B09H
PLI Sprocket No.:
667B09
Bore:
1 1/4 KW + 2SS
No. of Teeth:
9
Pitch Diameter:
6.75
Nominal:
0.9
Hub Dia.:
Hub L.T.B.:
Wgt. Lbs.:
Part No.:
C67B09IH
PLI Sprocket No.:
667B09
Bore:
1 1/4 P.B. NO KW + 2SS
No. of Teeth:
9
Pitch Diameter:
6.75
Nominal:
0.9
Hub Dia.:
Hub L.T.B.:
Wgt. Lbs.:
