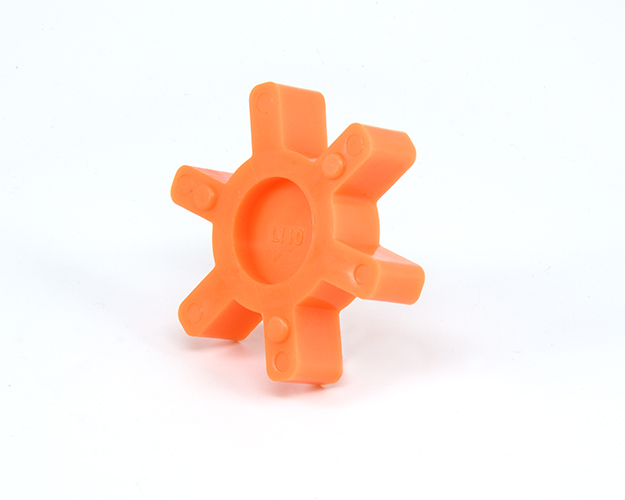

PLI Jaw Coupling Urethane Inserts

Jaw Coupling Urethane Inserts

Description

Power-Link Jaw Couplings are designed to meet high-quality standards while remaining very affordable. PLI offers one Jaw-type elastomeric couplings the straight L-Jaw coupling available with three insert materials perfectly interchangeable.

Download data sheet

Model Specifications

Print

PLI Jaw Coupling Urethane Inserts

Part No.:
LI050UR
Outside Diameter D:
1.07
Center Diameter d:
-
Total Width W:
0.42
Tooth Width T:
0.27
H:
-
Part No.:
LI070UR
Outside Diameter D:
1.38
Center Diameter d:
-
Total Width W:
0.42
Tooth Width T:
0.27
H:
-
Part No.:
LI075UR
Outside Diameter D:
1.75
Center Diameter d:
-
Total Width W:
0.44
Tooth Width T:
0.27
H:
-
Part No.:
LI090095UR
Outside Diameter D:
2.12
Center Diameter d:
0.88
Total Width W:
0.44
Tooth Width T:
0.36
H:
0.18
Part No.:
LI099100UR
Outside Diameter D:
2.54
Center Diameter d:
1.03
Total Width W:
0.61
Tooth Width T:
0.43
H:
0.25
Part No.:
LI110UR
Outside Diameter D:
3.31
Center Diameter d:
1.19
Total Width W:
0.75
Tooth Width T:
0.45
H:
0.18
Part No.:
LI150UR
Outside Diameter D:
3.75
Center Diameter d:
1.25
Total Width W:
0.88
Tooth Width T:
0.59
H:
0.21
Part No.:
LI190UR
Outside Diameter D:
4.5
Center Diameter d:
1.38
Total Width W:
0.88
Tooth Width T:
0.6
H:
0.18
Part No.:
LI225UR
Outside Diameter D:
4.98
Center Diameter d:
1.75
Total Width W:
0.88
Tooth Width T:
0.73
H:
0.18
