Double Single Sprockets Chain 60
60 Double Single Type Roller Chain Sprockets
Description

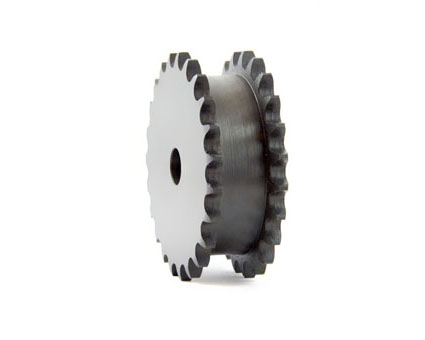

DOUBLE SINGLE TYPE
All PLI sprockets are manufactured using the ISO 9001 quality management system. PLI Double-single sprockets run two single parallel chains. Double-single sprockets have a stock bore and usually require some altering before installation. The teeth will be hardened on sprockets with 21 or fewer teeth.
Model Specifications
Print
Double Single Sprockets Chain 60
| Part No. | PLI Sprocket No. | No. of Teeth | Diameters Outside | Bore Stock | Bore Max | Dimensions L | Dimensions C | Dimensions E | Wgt. Lbs. | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part No.:
60DS13 |
PLI Sprocket No.:
DS60A13H |
No. of Teeth:
13 |
Diameters Outside:
3.49 |
Bore Stock:
0.75 |
Bore Max:
1.25 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
2.344 |
Wgt. Lbs.:
2.6 |
|||
|
Part No.:
60DS14 |
PLI Sprocket No.:
DS60A14H |
No. of Teeth:
14 |
Diameters Outside:
3.74 |
Bore Stock:
0.75 |
Bore Max:
1.313 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
2.563 |
Wgt. Lbs.:
3.2 |
|||
|
Part No.:
60DS15 |
PLI Sprocket No.:
DS60A15H |
No. of Teeth:
15 |
Diameters Outside:
3.98 |
Bore Stock:
0.75 |
Bore Max:
1.5 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
2.875 |
Wgt. Lbs.:
3.8 |
|||
|
Part No.:
60DS16 |
PLI Sprocket No.:
DS60A16H |
No. of Teeth:
16 |
Diameters Outside:
4.22 |
Bore Stock:
0.75 |
Bore Max:
1.688 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
3.047 |
Wgt. Lbs.:
4.5 |
|||
|
Part No.:
60DS17 |
PLI Sprocket No.:
DS60A17H |
No. of Teeth:
17 |
Diameters Outside:
4.46 |
Bore Stock:
0.75 |
Bore Max:
1.75 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
3.25 |
Wgt. Lbs.:
5.3 |
|||
|
Part No.:
60DS18 |
PLI Sprocket No.:
DS60A18H |
No. of Teeth:
18 |
Diameters Outside:
4.7 |
Bore Stock:
0.75 |
Bore Max:
1.875 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
3.5 |
Wgt. Lbs.:
6.5 |
|||
|
Part No.:
60DS19 |
PLI Sprocket No.:
DS60A19H |
No. of Teeth:
19 |
Diameters Outside:
4.95 |
Bore Stock:
0.75 |
Bore Max:
2.063 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
3.703 |
Wgt. Lbs.:
6.8 |
|||
|
Part No.:
60DS20 |
PLI Sprocket No.:
DS60A20H |
No. of Teeth:
20 |
Diameters Outside:
5.19 |
Bore Stock:
0.75 |
Bore Max:
2.25 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
3.953 |
Wgt. Lbs.:
7 |
|||
|
Part No.:
60DS21 |
PLI Sprocket No.:
DS60A21H |
No. of Teeth:
21 |
Diameters Outside:
5.43 |
Bore Stock:
0.75 |
Bore Max:
2.75 |
Dimensions L:
1.938 |
Dimensions C:
1.484 |
Dimensions E:
4.188 |
Wgt. Lbs.:
7.5 |
|||
3/4" Pitch, Nominal = 0.459", Maximun bores shown will accommodate standard keyseat & setscrew over Keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at an angle to keyseat.
