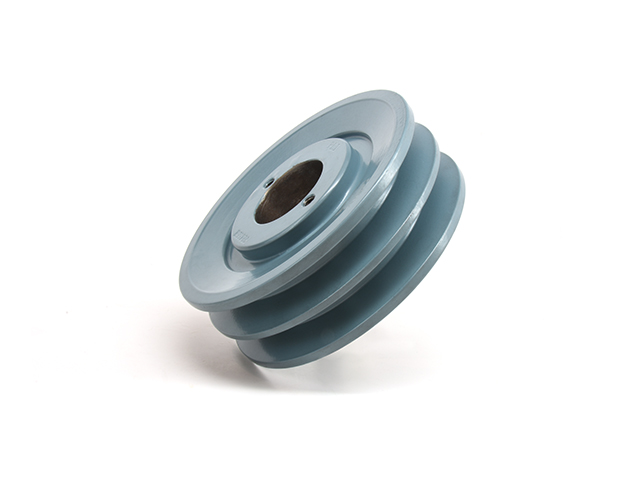

Light Duty Double Bushed Type (H Bushing)

Double Bushed Type Pulleys

Description

Model Specifications

Print

Light Duty Double Bushed Type (H Bushing)

Part No.:
PUDBH036
References Numbers:
2BK36H
Outside Diameter:
3.75
Type:
I
Dim. C:
1.375
Dim. B:
1.75
Dim. L:
1.344
Dim. A:
0.969
Wgt. Lbs:
3
Part No.:
PUDBH040
References Numbers:
2BK40H
Outside Diameter:
3.95
Type:
I
Dim. C:
0.938
Dim. B:
1.75
Dim. L:
1.344
Dim. A:
0.531
Wgt. Lbs:
2.8
Part No.:
PUDBH055
References Numbers:
2BK55H
Outside Diameter:
5.25
Type:
II
Dim. C:
0.094
Dim. B:
1.75
Dim. L:
1.344
Dim. A:
0.313
Wgt. Lbs:
4.4
Part No.:
PUDBH070
References Numbers:
2BK70H
Outside Diameter:
6.75
Type:
III
Dim. C:
0.063
Dim. B:
1.75
Dim. L:
1.344
Dim. A:
0.344
Wgt. Lbs:
5.55
Part No.:
PUDBH072
References Numbers:
2BK72H
Outside Diameter:
6.95
Type:
III
Dim. C:
0.063
Dim. B:
1.75
Dim. L:
1.344
Dim. A:
0.344
Wgt. Lbs:
6.65
Part No.:
PUDBH080
References Numbers:
2BK80H
Outside Diameter:
7.75
Type:
III
Dim. C:
0.063
Dim. B:
1.75
Dim. L:
1.344
Dim. A:
0.344
Wgt. Lbs:
6.85

C & A Dimensions may vary due to the tolerance of the shaft.
